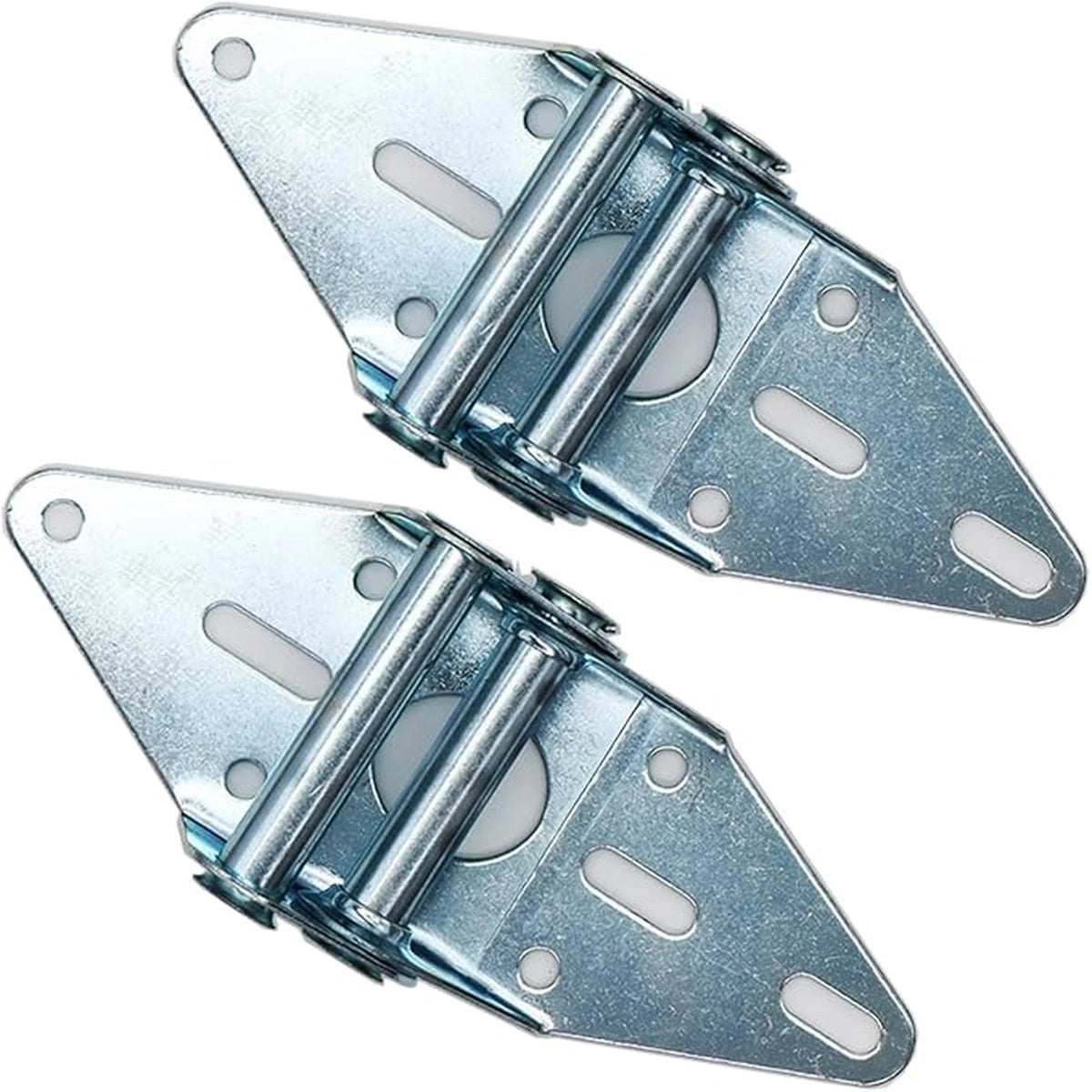

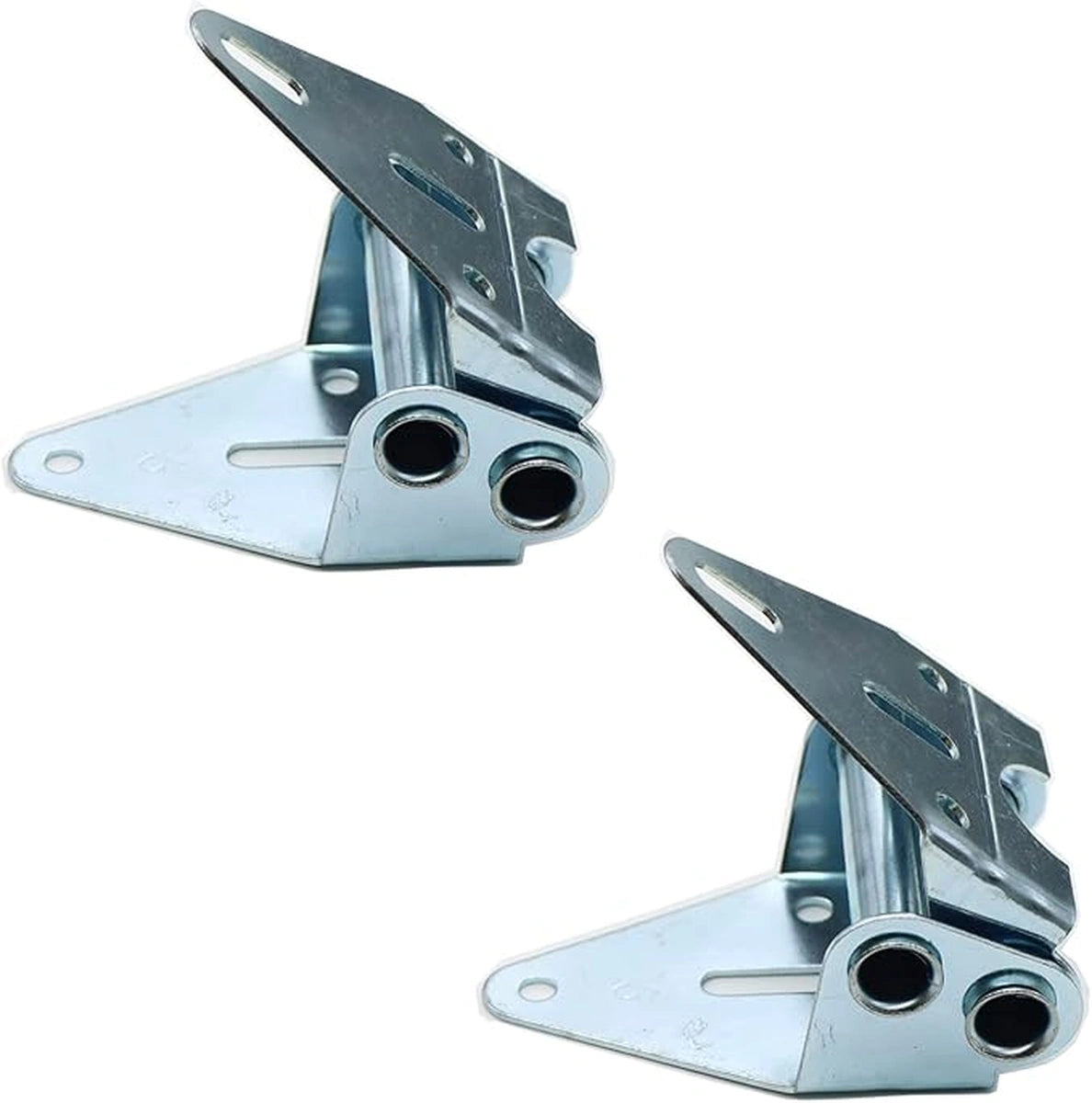

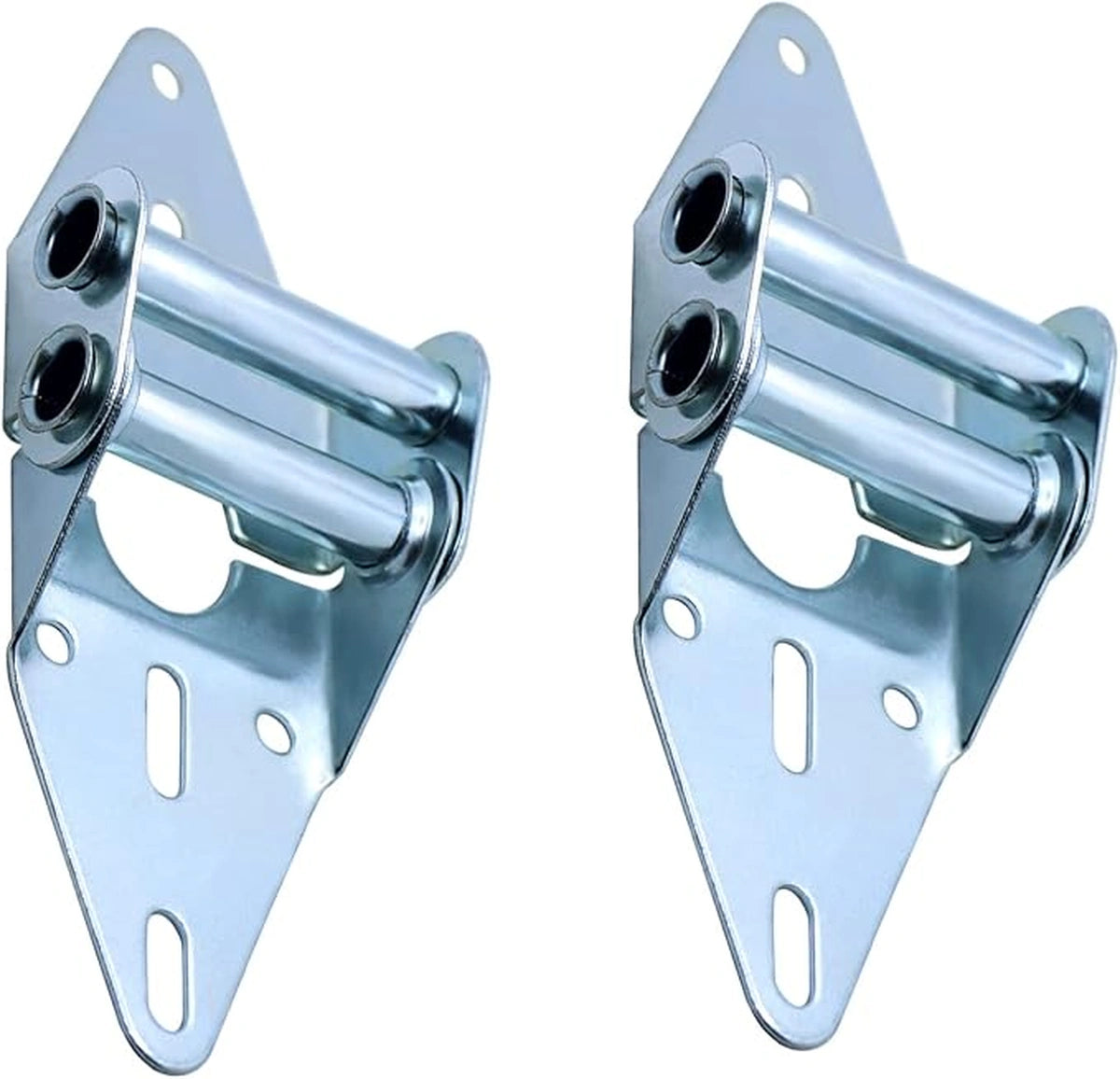

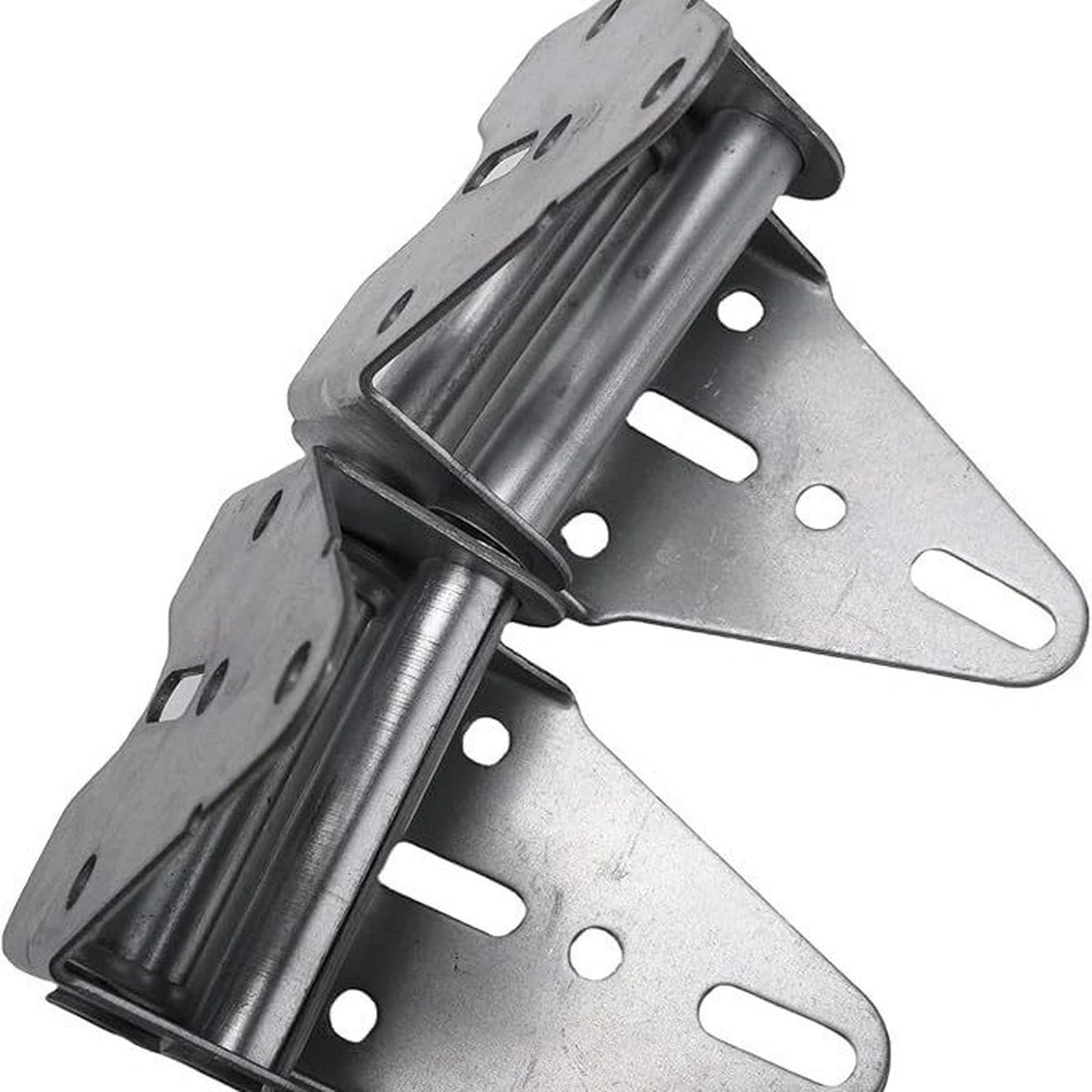

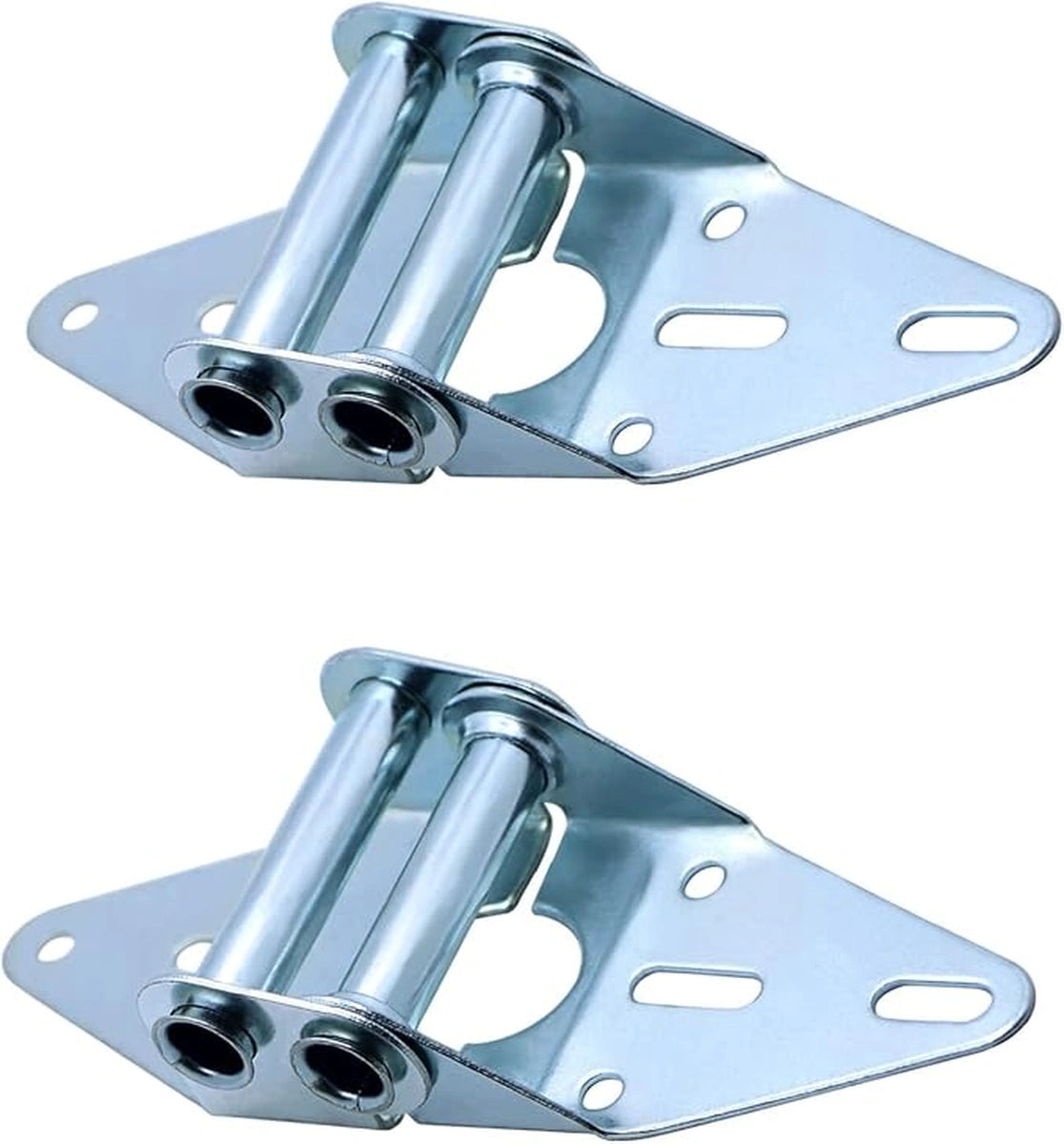

Sectional Garage Door Hinge, Zinc-Plated Steel Roller Bracket

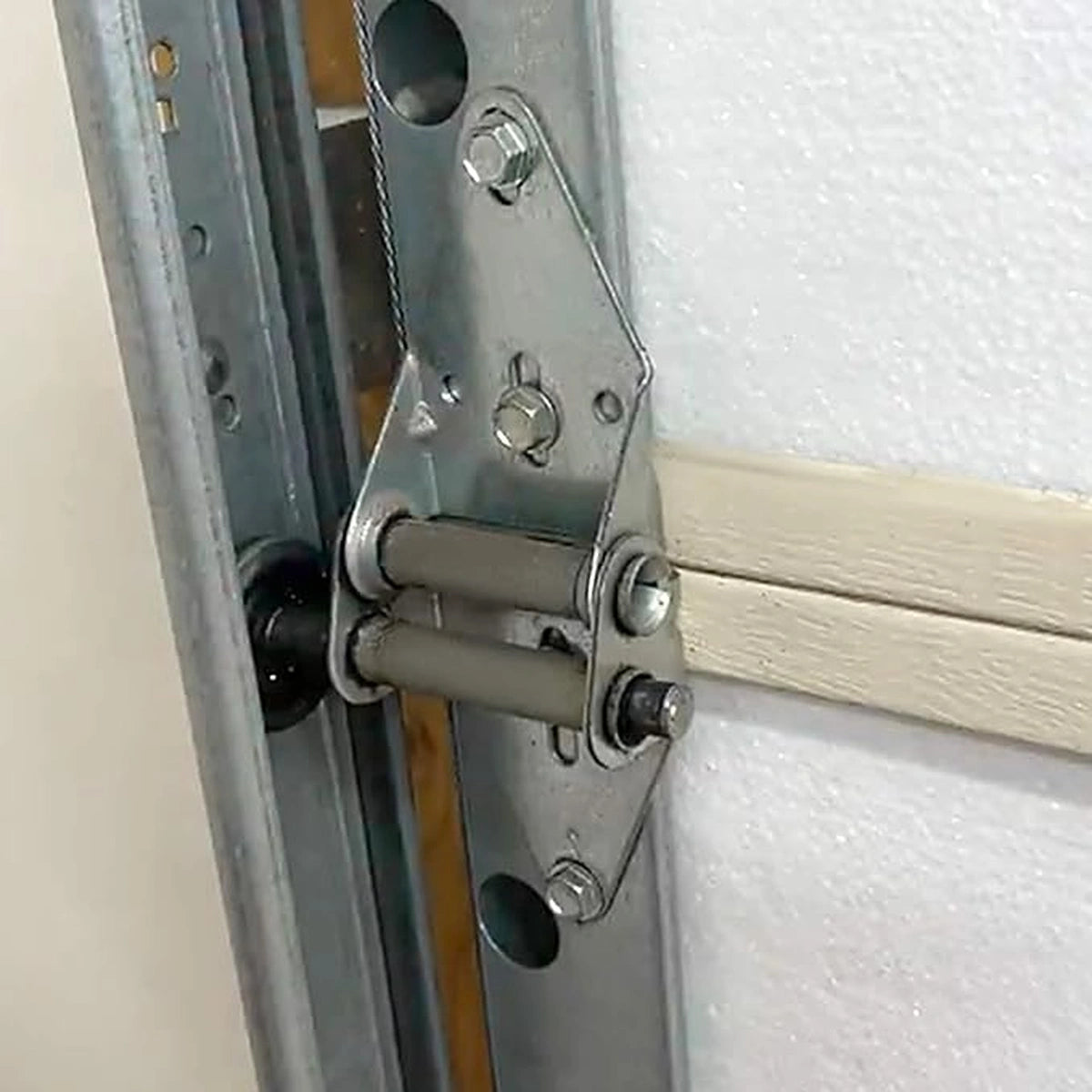

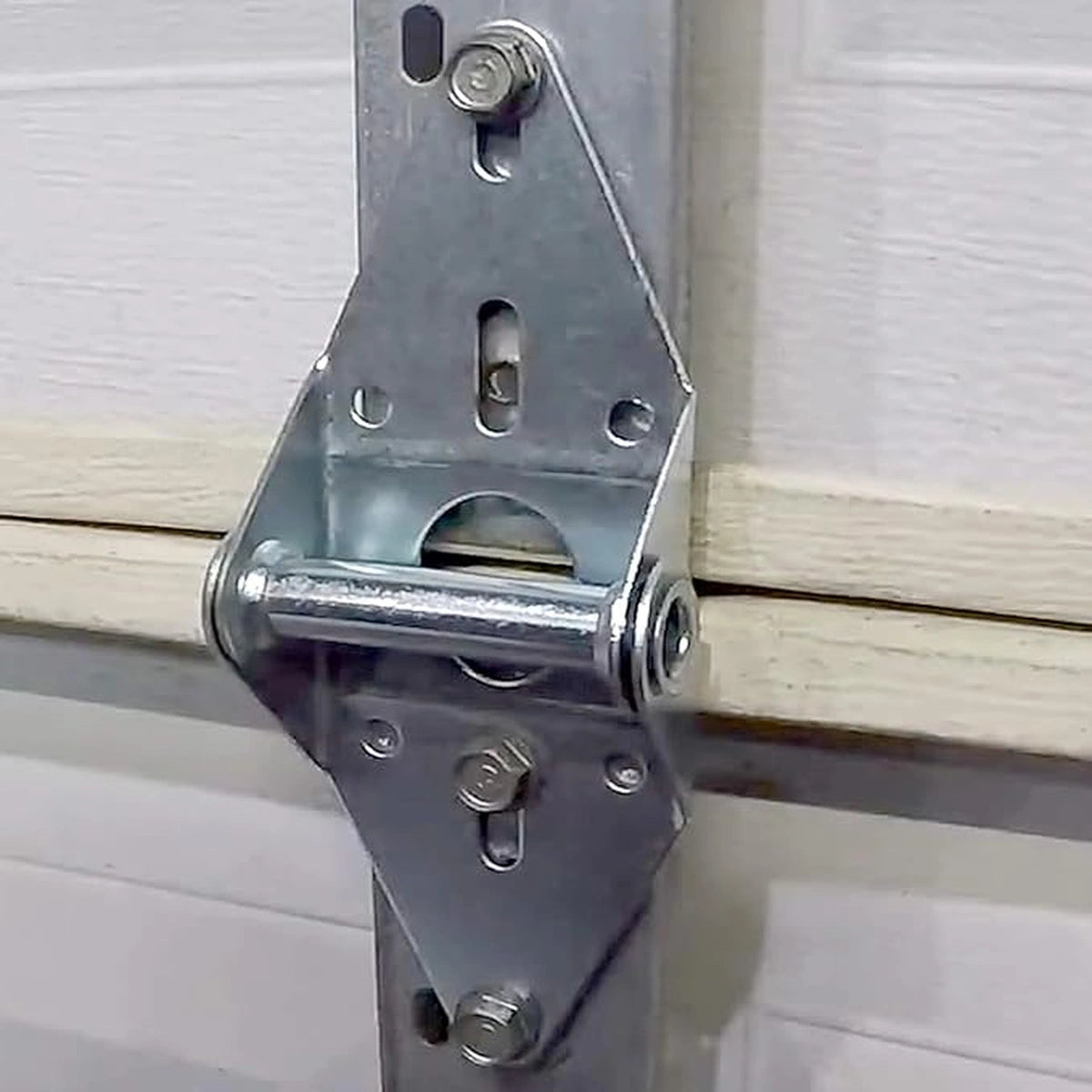

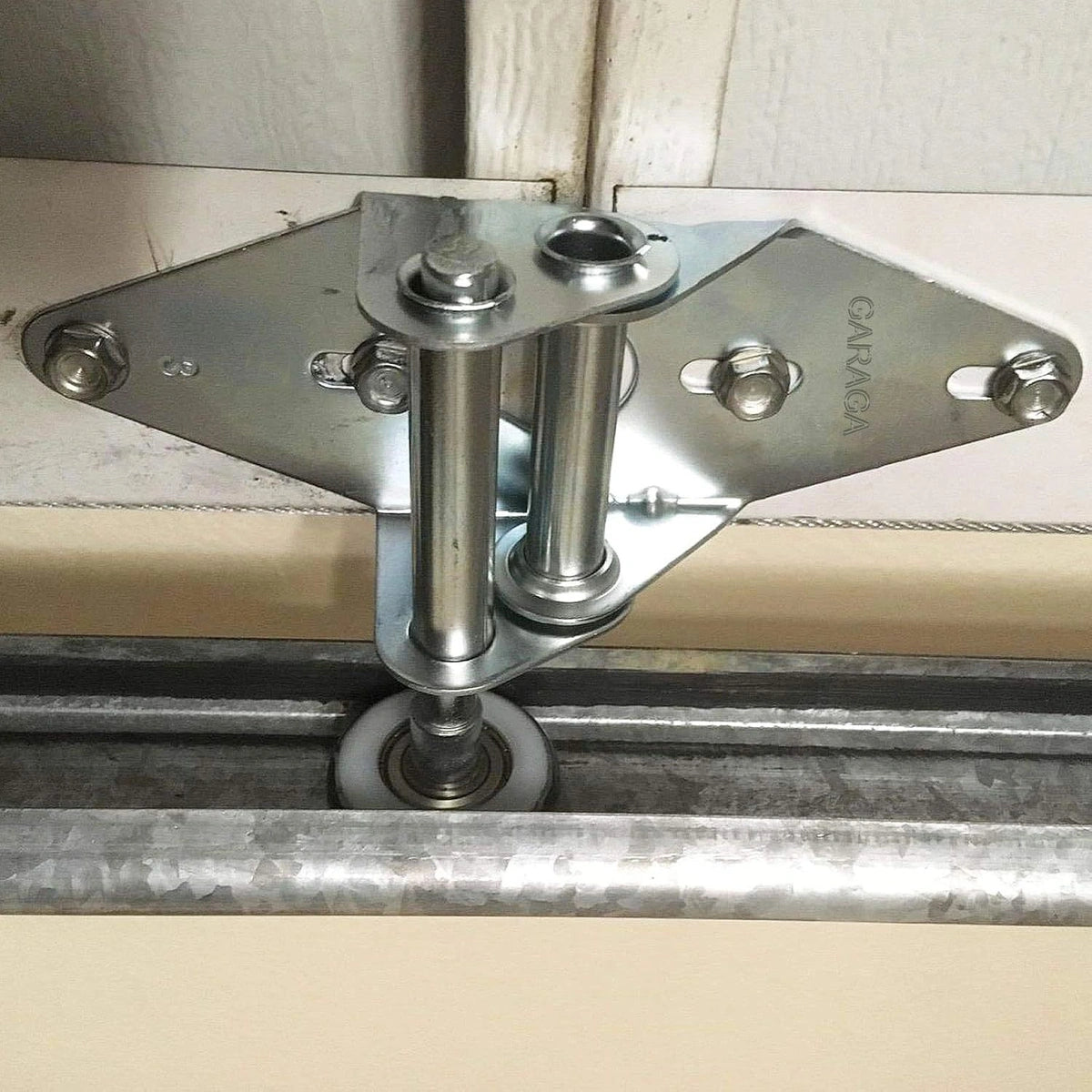

Replace worn or damaged hinges on a sectional garage door with numbered roller hinge brackets designed for overhead door panels. Each hinge number has a different roller offset, helping the door panels transition through the track system as the door opens and closes.

• Designed for sectional and overhead garage door panel systems
• Available in Hinge No. 1, No. 2, No. 3, No. 4, and No. 5 configurations
• Zinc-plated steel construction helps resist everyday corrosion
• Approximately 1.8 mm / 0.07 in. steel thickness

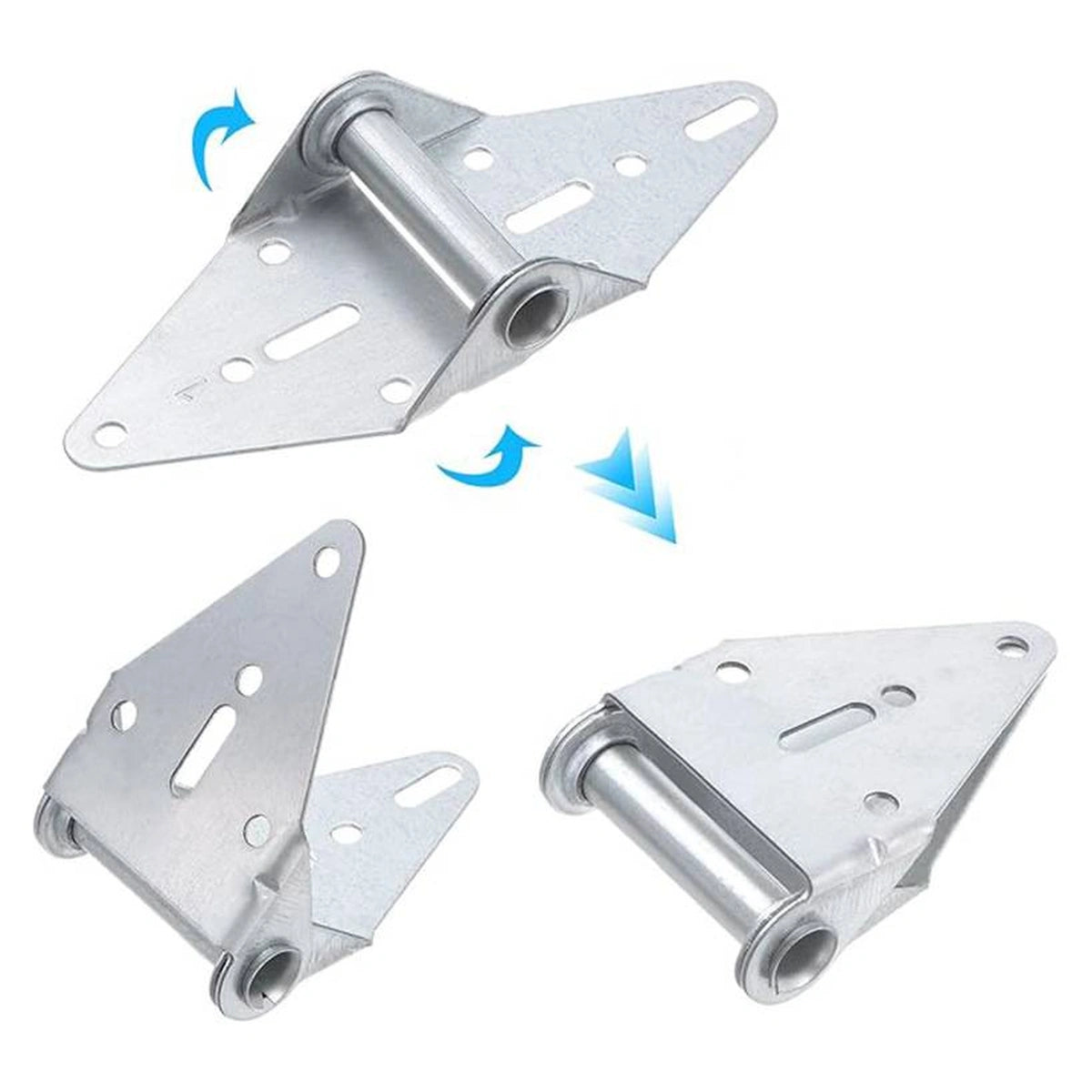

• Pre-punched round and slotted mounting holes allow alignment during installation

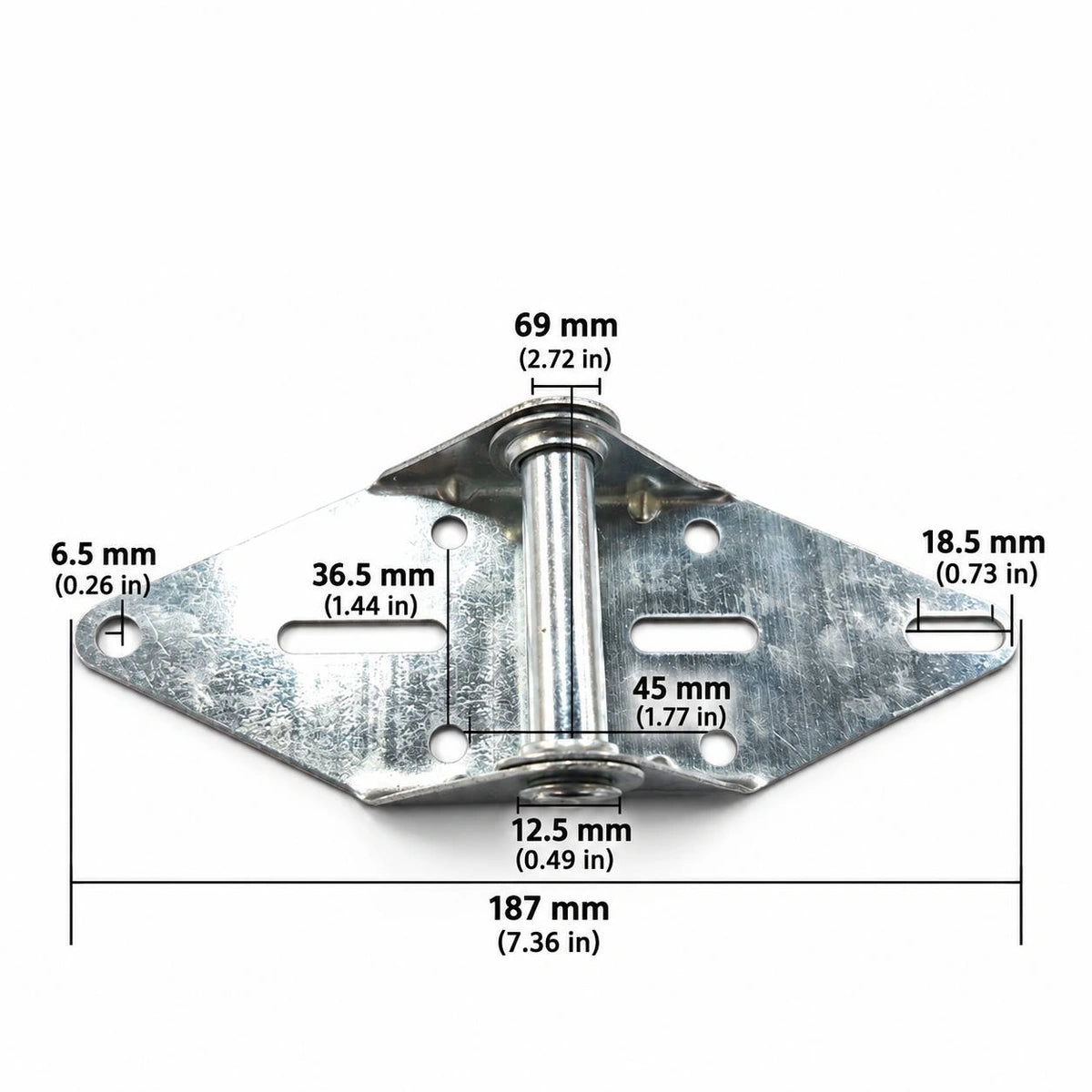

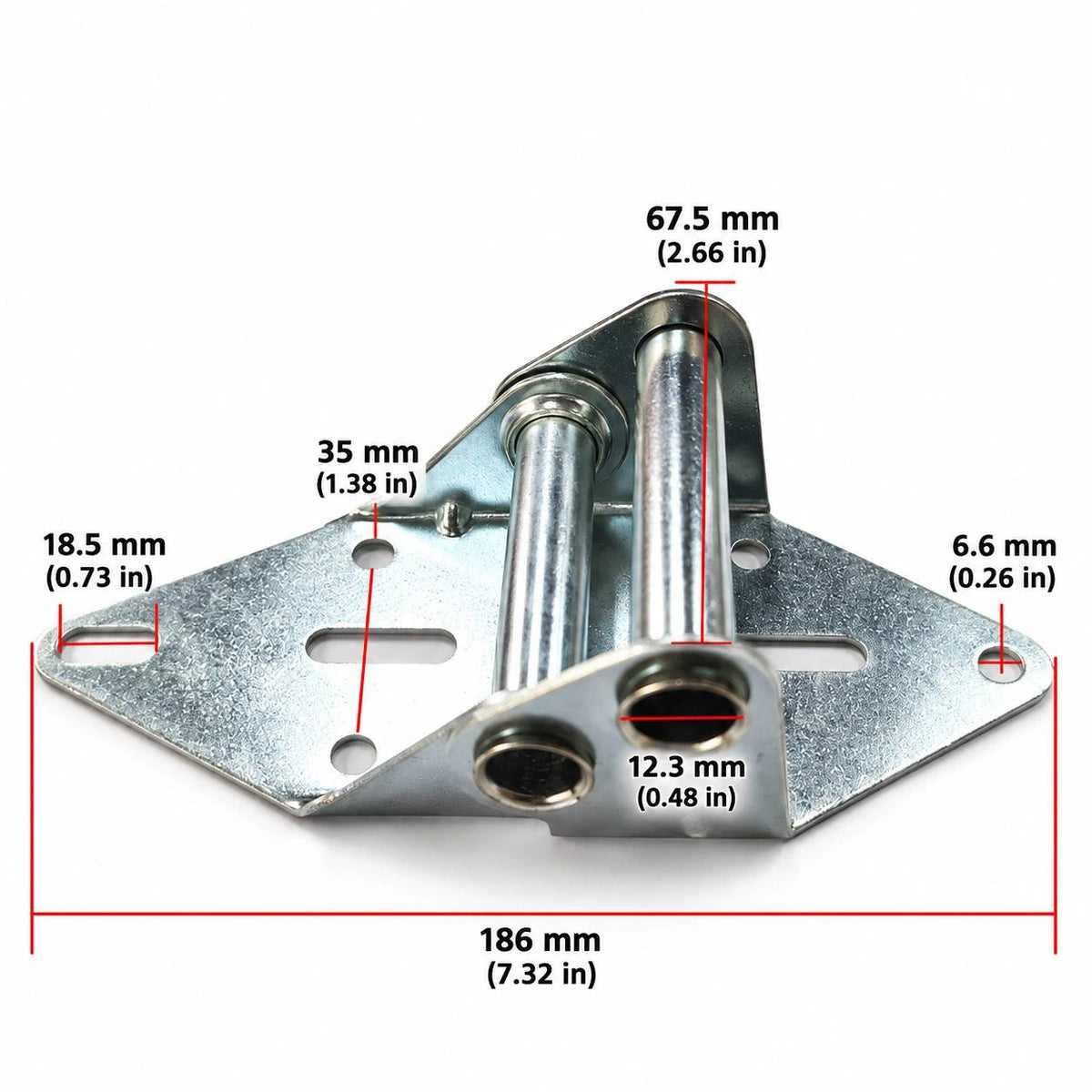

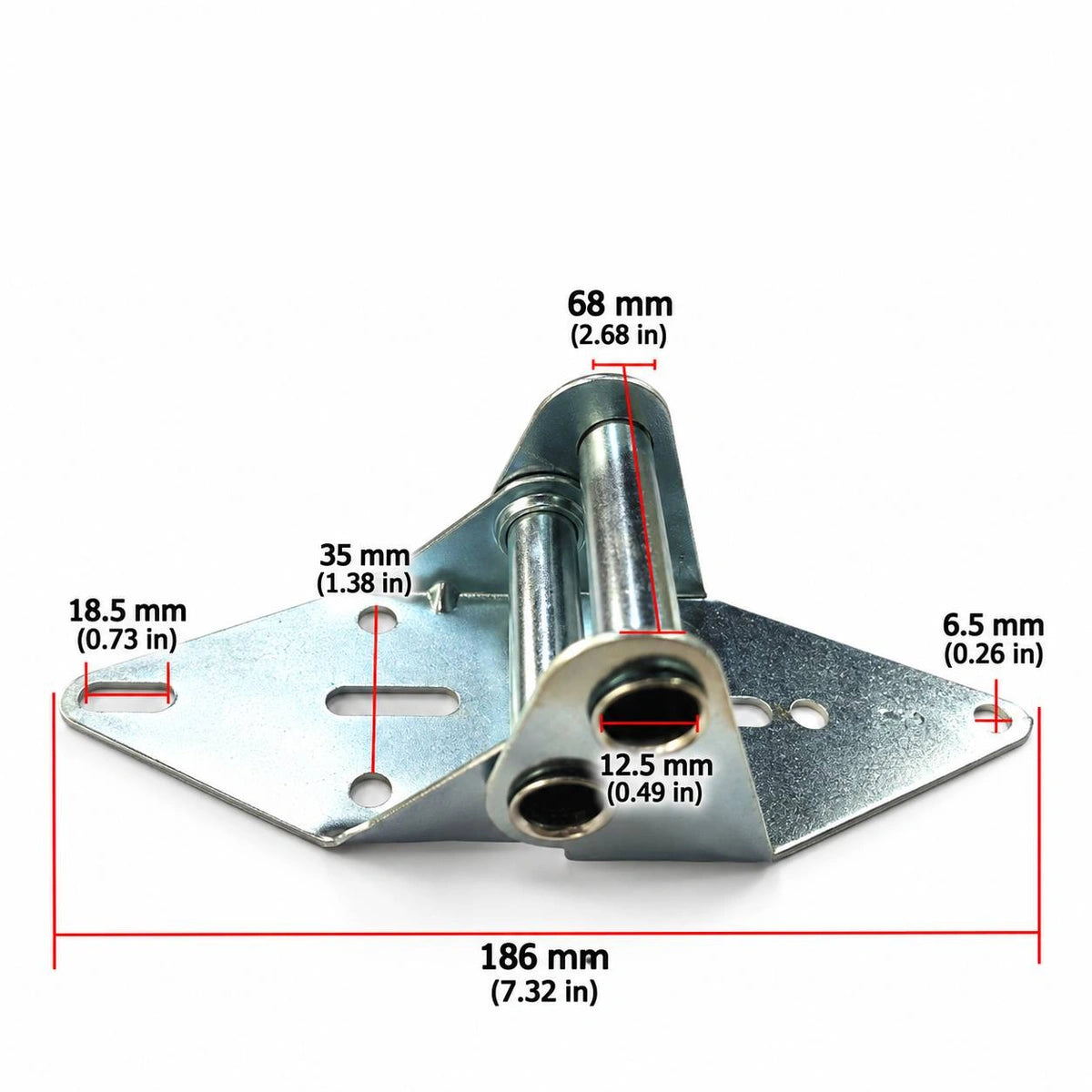

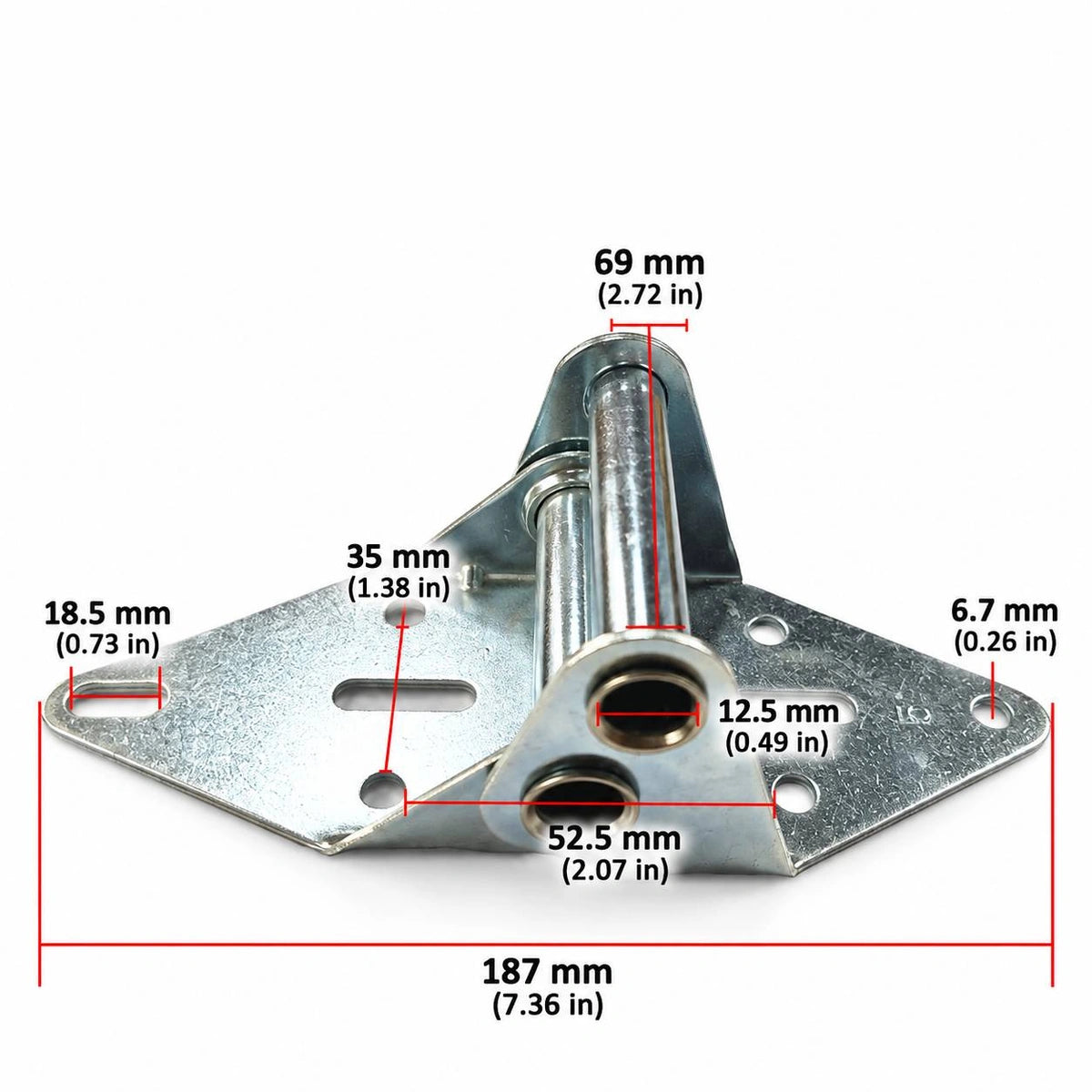

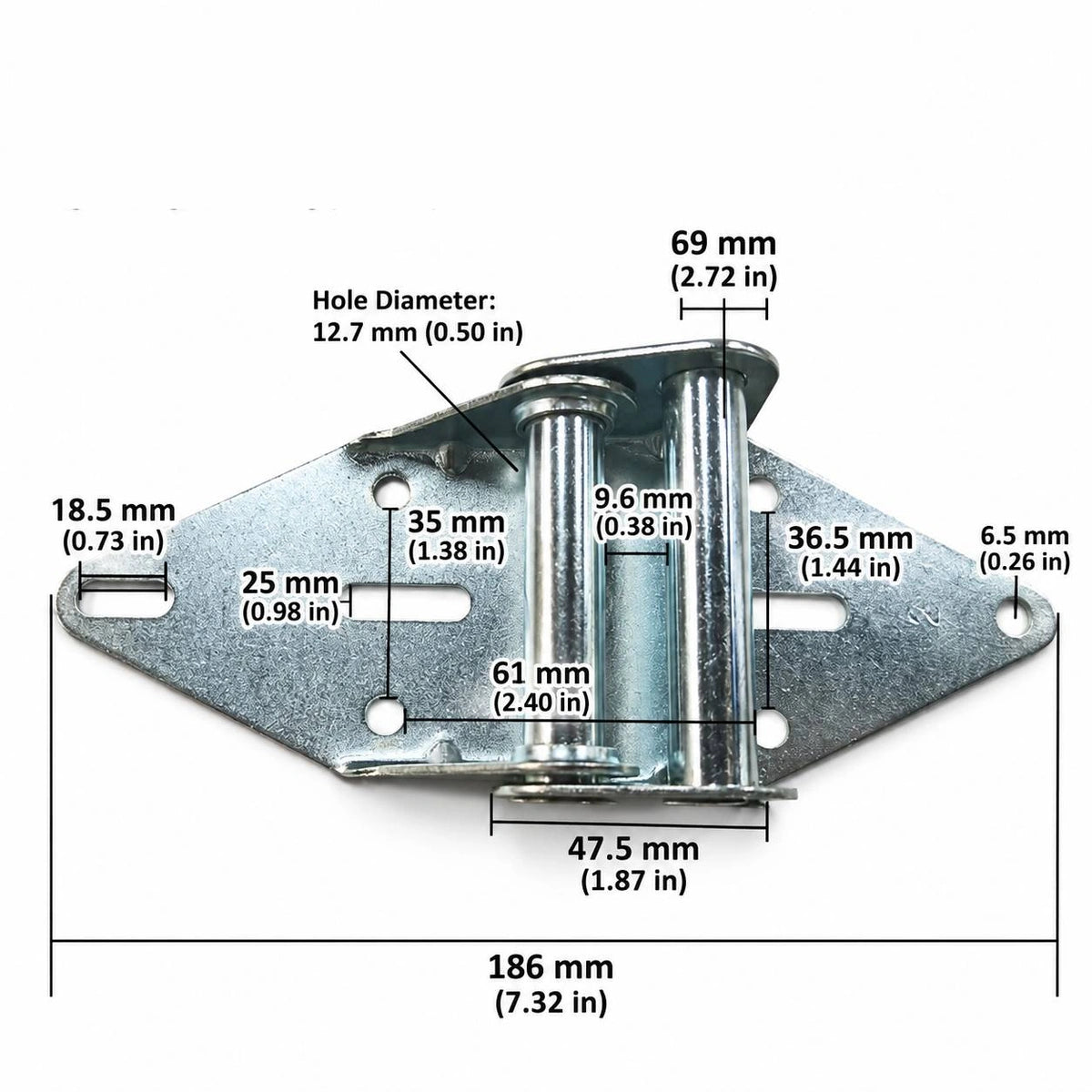

• Most options measure approximately 7.3 in. wide (186–187 mm)
• Roller tube opening is approximately 0.49 in. (12.5 mm) on applicable numbered options
• Sold individually; select the matching hinge number and quantity needed

Before ordering, check the number stamped or marked on the existing hinge, along with the roller stem diameter, door-panel layout, and track configuration. Numbered garage door hinges are position-specific and should not be selected by size alone.
