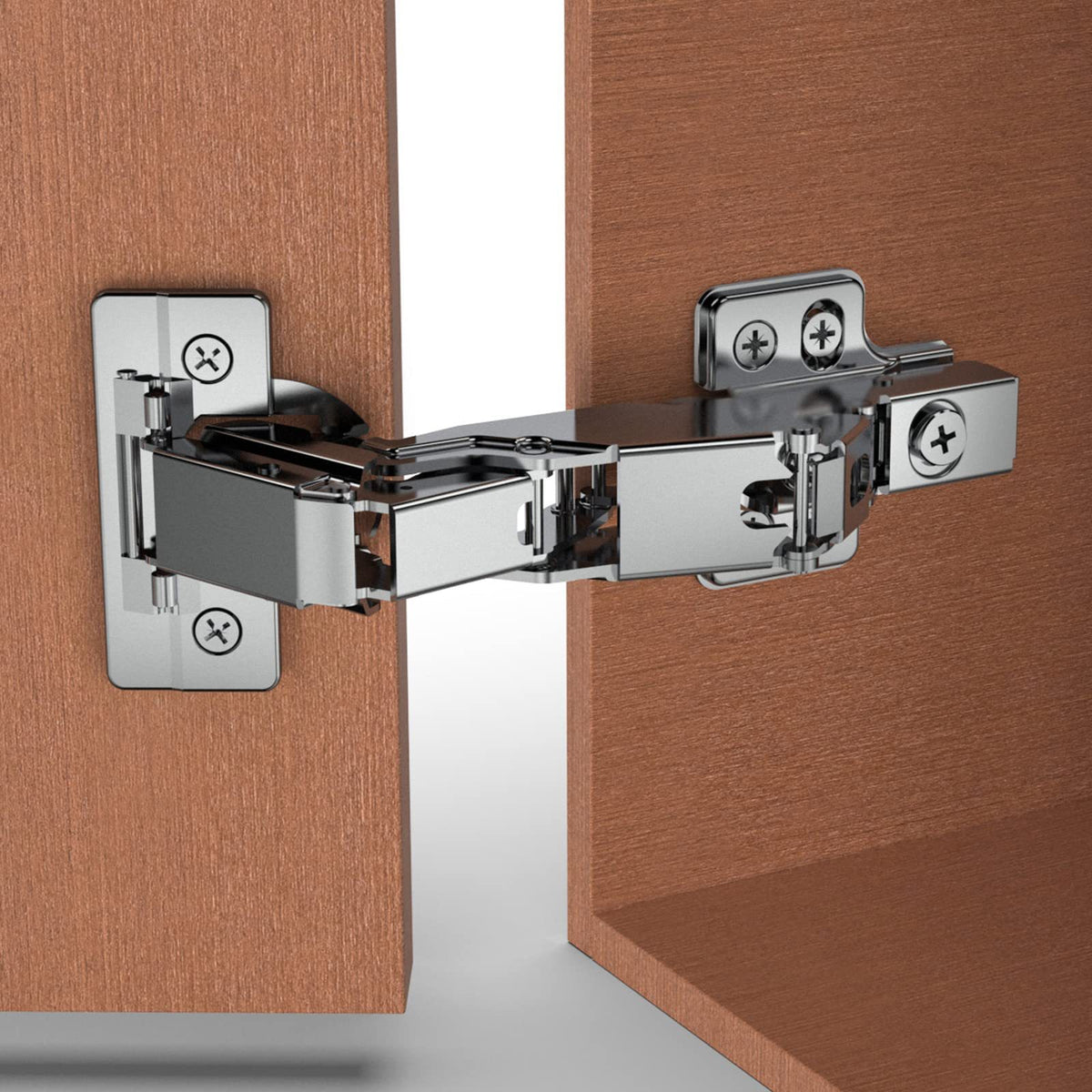

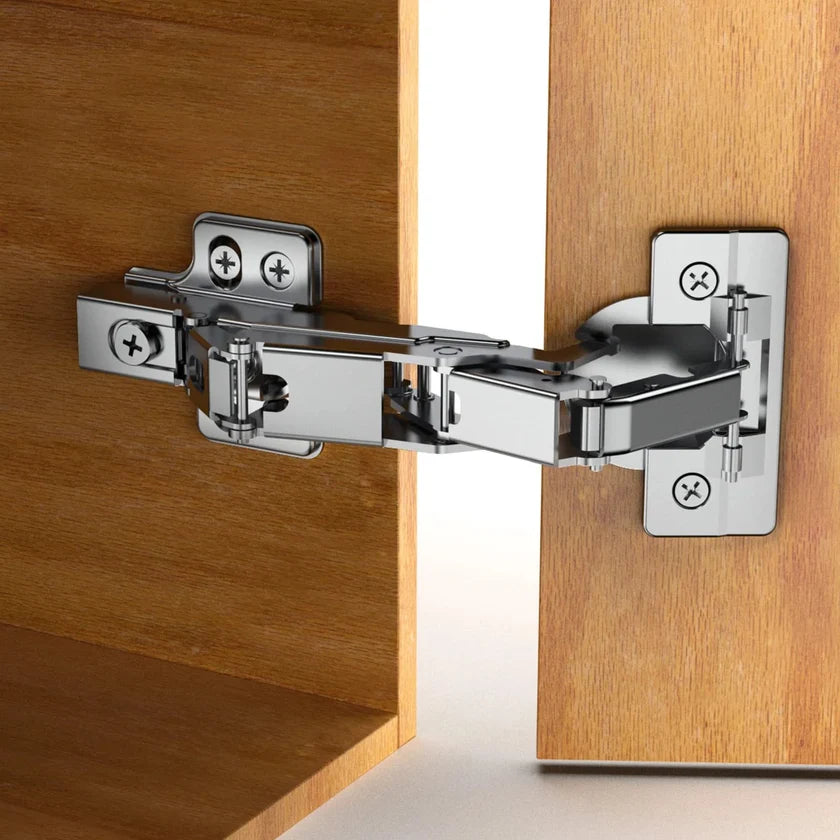

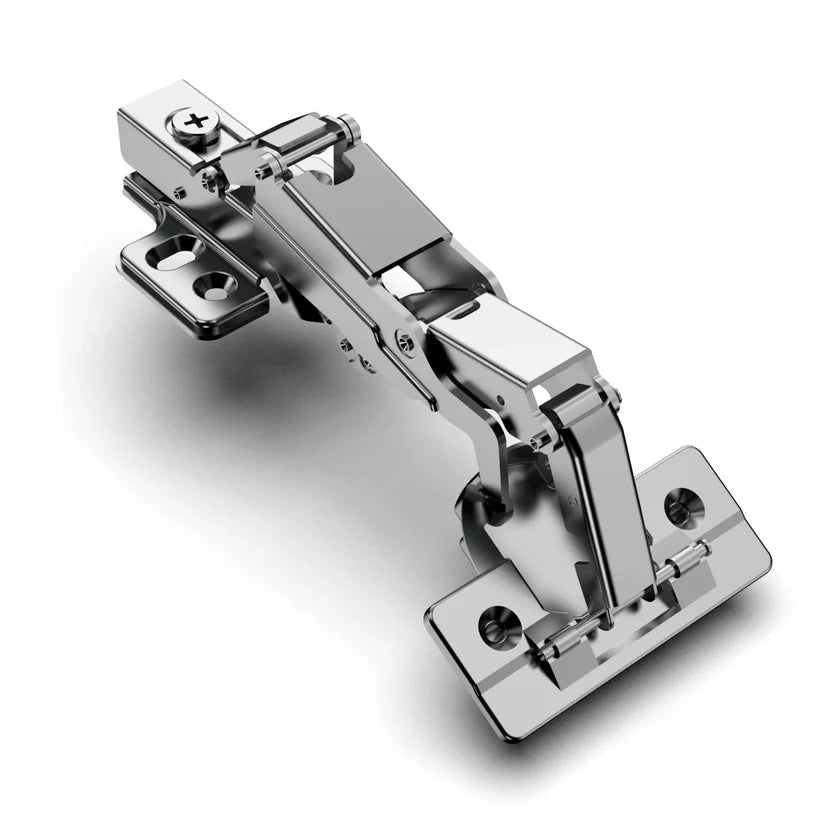

175° Soft-Close Lazy Susan Hinges for Frameless Corner Cabinets
Open up hard-to-reach corner cabinets with a wide 175° swing and controlled soft-close action. These full-overlay concealed hinges are designed for frameless Lazy Susan cabinets, folded doors and other corner-cabinet applications.
175° wide opening: gives corner-cabinet doors more clearance and easier access.

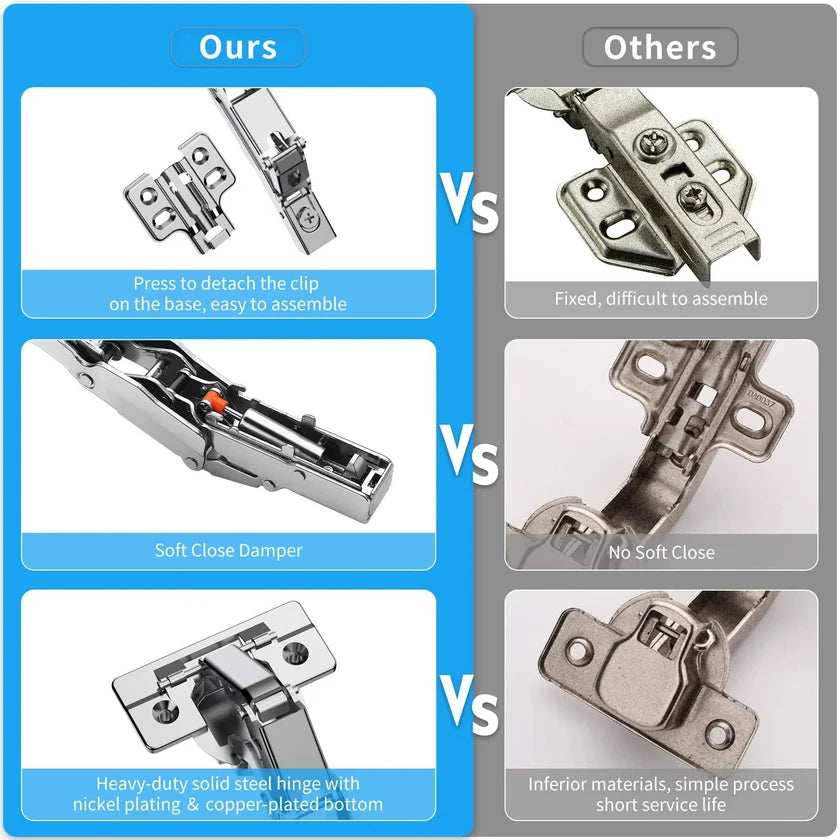

Soft-close damping: helps doors close smoothly and quietly.
Frameless full-overlay fit: designed for full-overlay cabinet doors on frameless boxes.

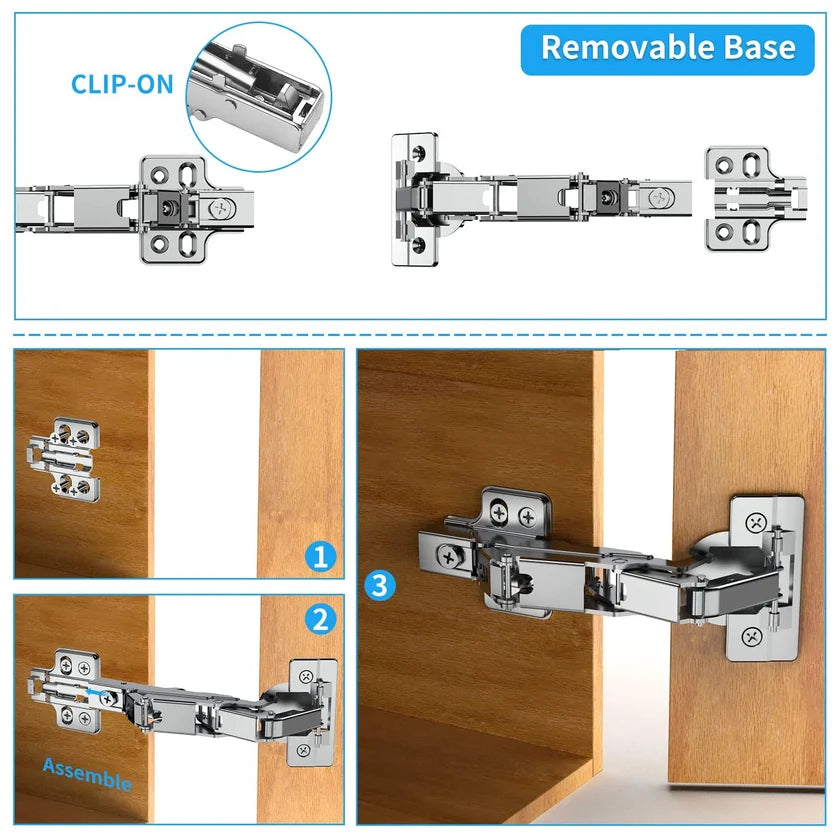

Clip-on mounting plate: supports faster mounting and convenient door alignment.

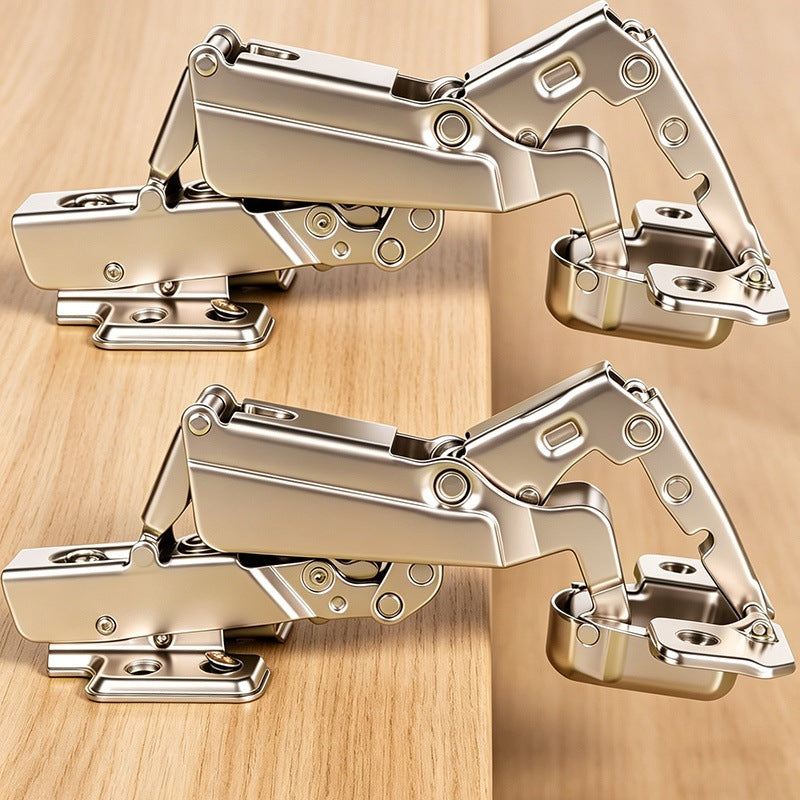

2-pack set: includes one pair of hinges with installation screws.
Specifications
Hinge Type
Concealed Lazy Susan / corner cabinet hinge
Closing Type
Soft close
Opening Angle
175°
Cabinet Application

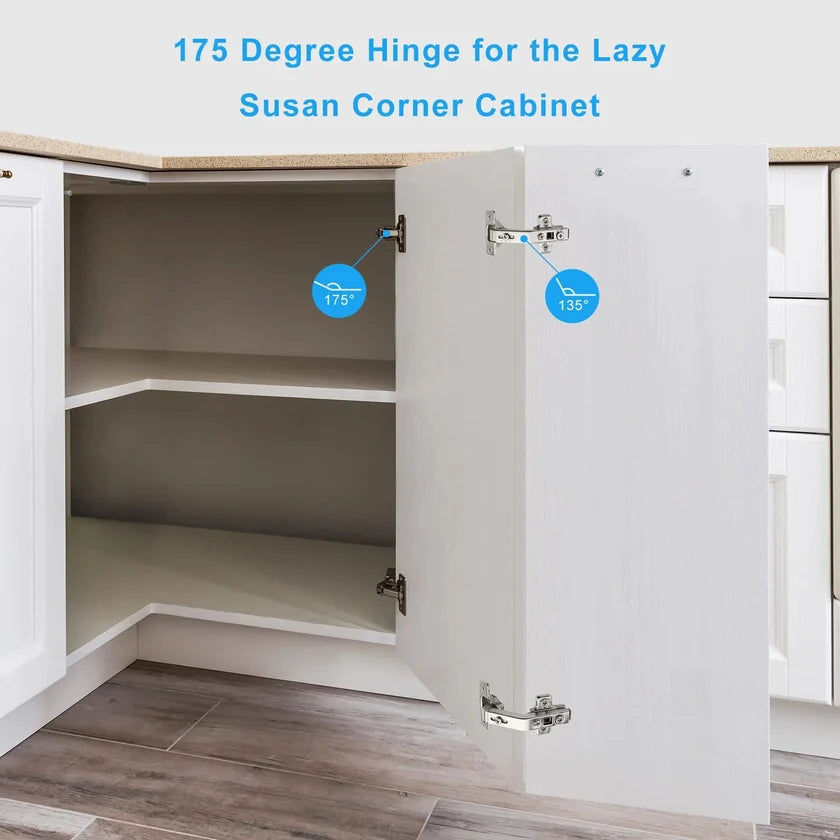

Frameless corner cabinets, Lazy Susan cabinets and folded doors
Door Position
Full overlay

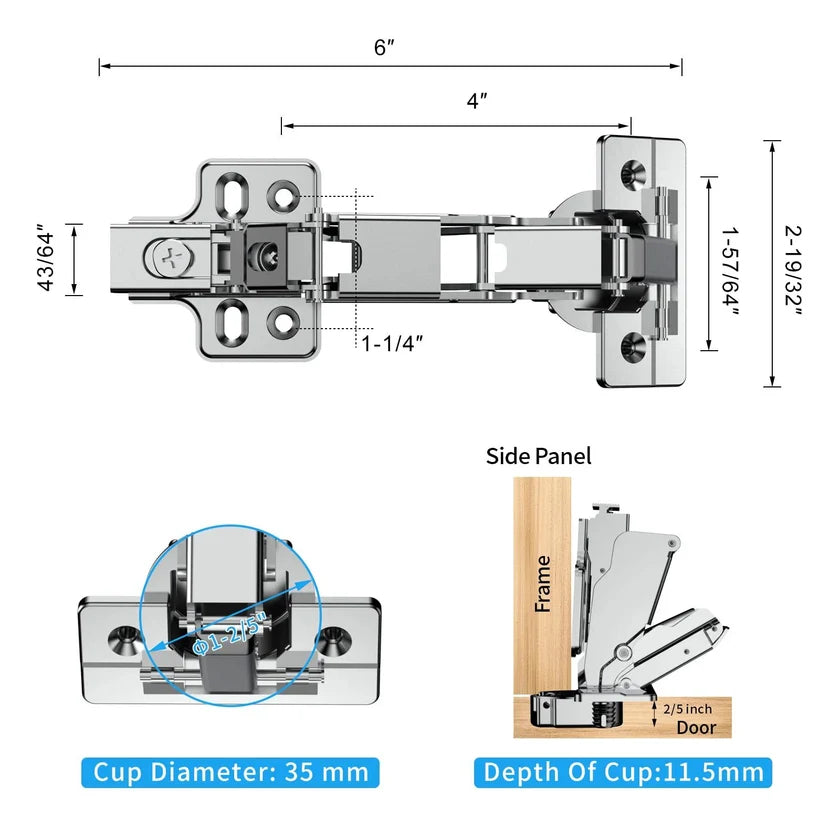

Cup Bore
35 mm (1-3/8 in.)
Cup Depth
11.5 mm (approximately 7/16 in.)
Screw-Hole Spacing
45 mm (approximately 1-3/4 in.)
Material
Cold-rolled steel with nickel plating and brass base
Mounting Plate
Clip-on plate

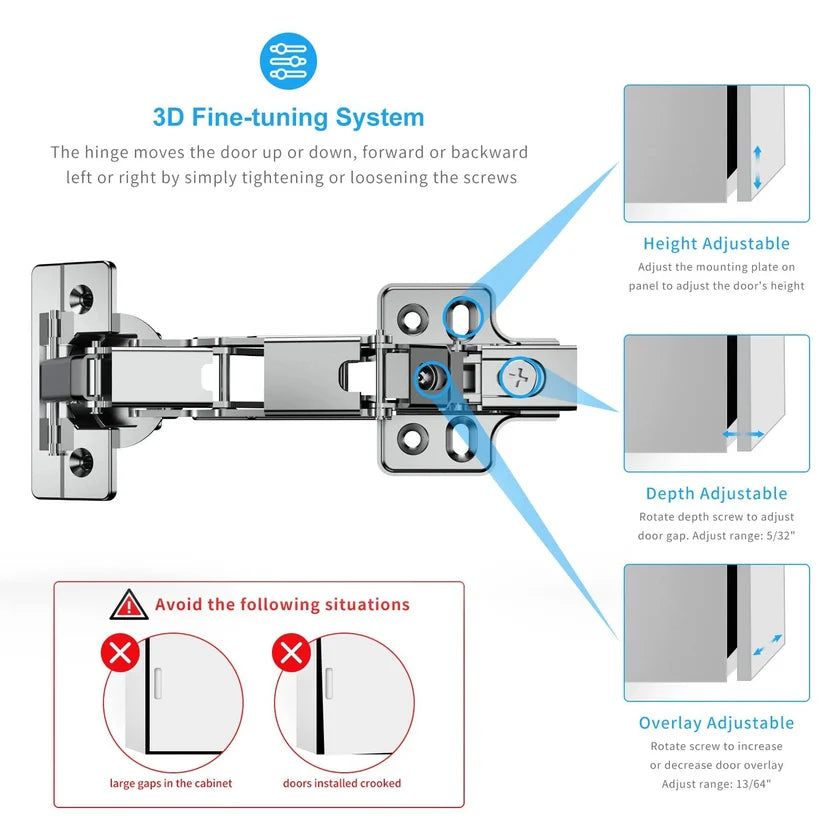

Adjustment
3D door alignment adjustment
Pack Contents
2 hinges (1 pair) with installation screws
Before ordering: confirm that your cabinet is frameless, your door is full overlay, and the door has a compatible 35 mm cup bore. This hinge is intended for corner-cabinet and Lazy Susan applications.
