Arden 170° Soft-Close No-Bore Surface-Mount Concealed Cabinet Hinge – Adjustable 135°–175° Opening

The Arden 170° Soft-Close No-Bore Surface-Mount Concealed Cabinet Hinge gives cabinet doors wide access without a standard 35 mm cup bore. Its soft-close mechanism cushions the closing motion, while the 170° nominal opening adjusts from 135° to 175° for flexible cabinet-door clearance.

Key Features

• Soft-close cabinet hinge: Helps cabinet doors close in a controlled, cushioned motion.

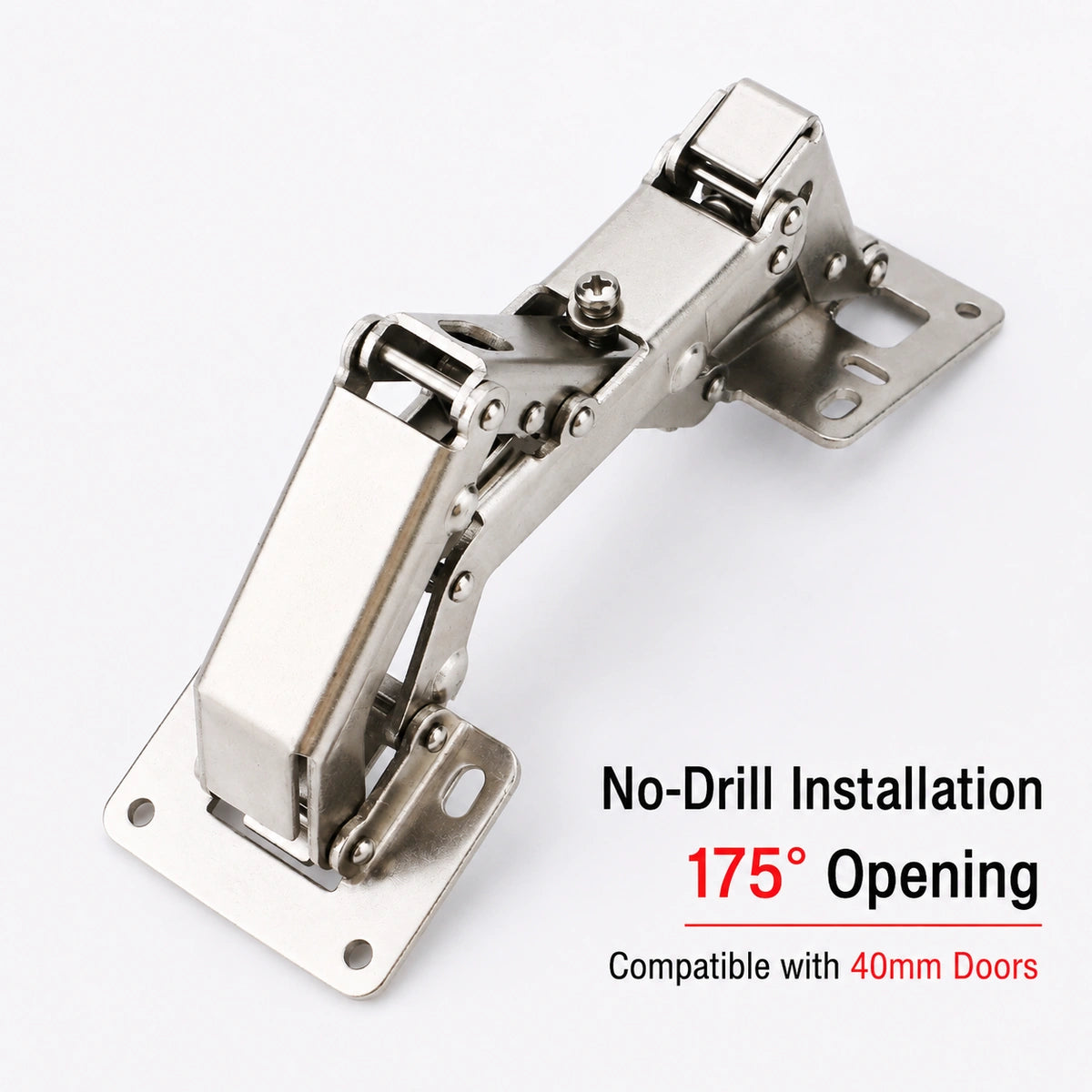

• No 35 mm cup bore: Surface-mount construction avoids the standard concealed-hinge cup hole.

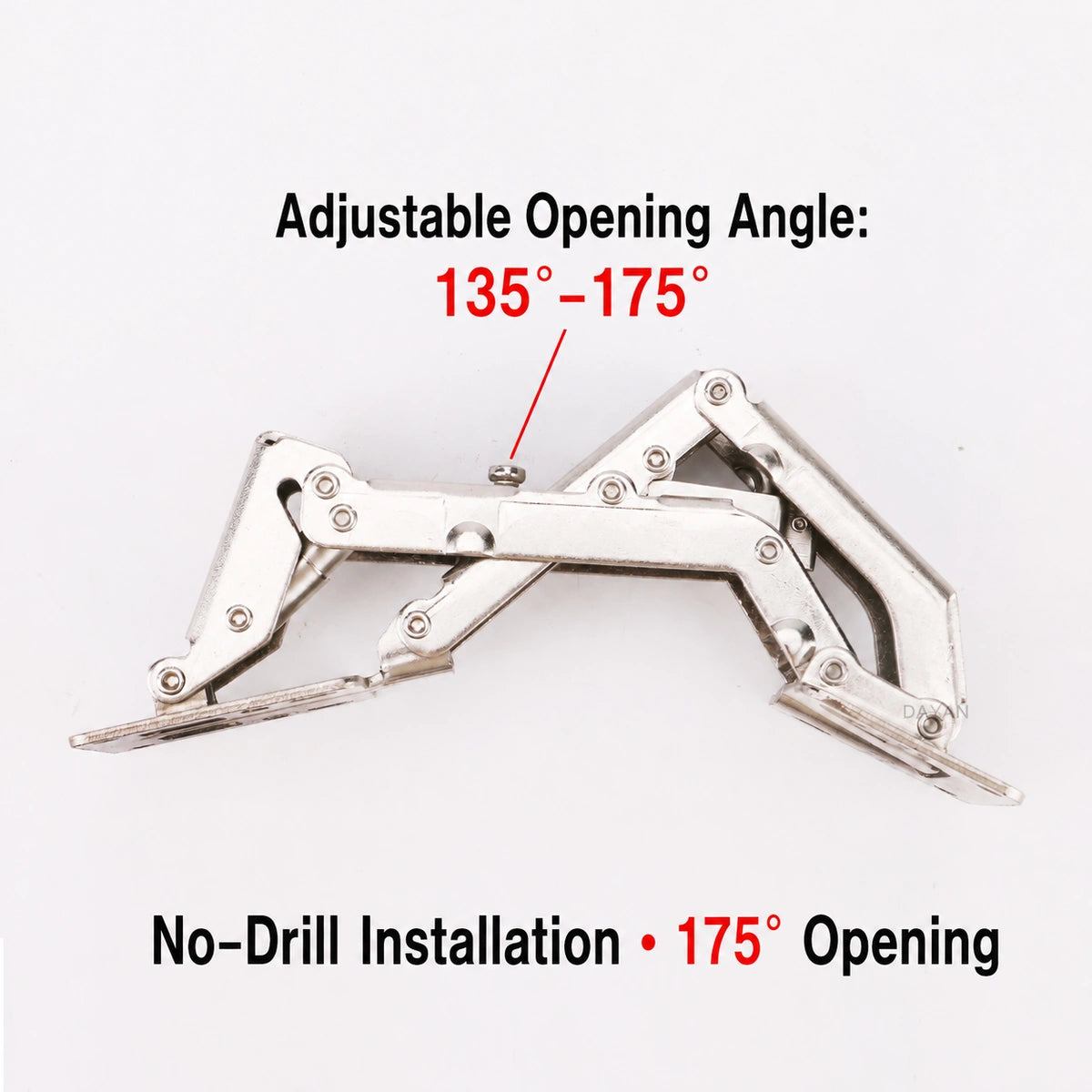

• Wide-angle access: 170° nominal opening; adjustable from 135° to 175°.

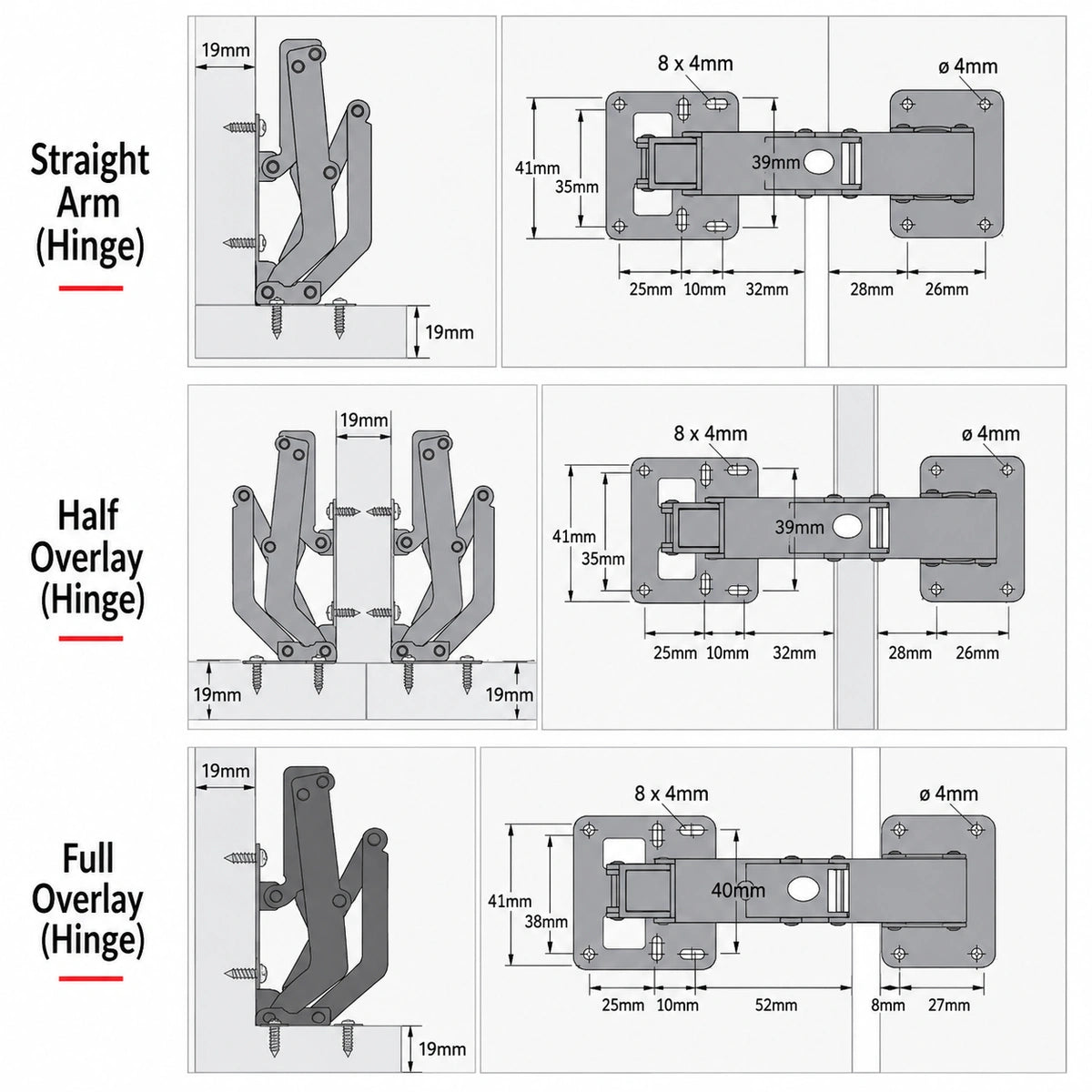

• Multiple door positions: Suitable for full-overlay, half-overlay, and inset installations when correctly positioned.

Specifications

Before Ordering

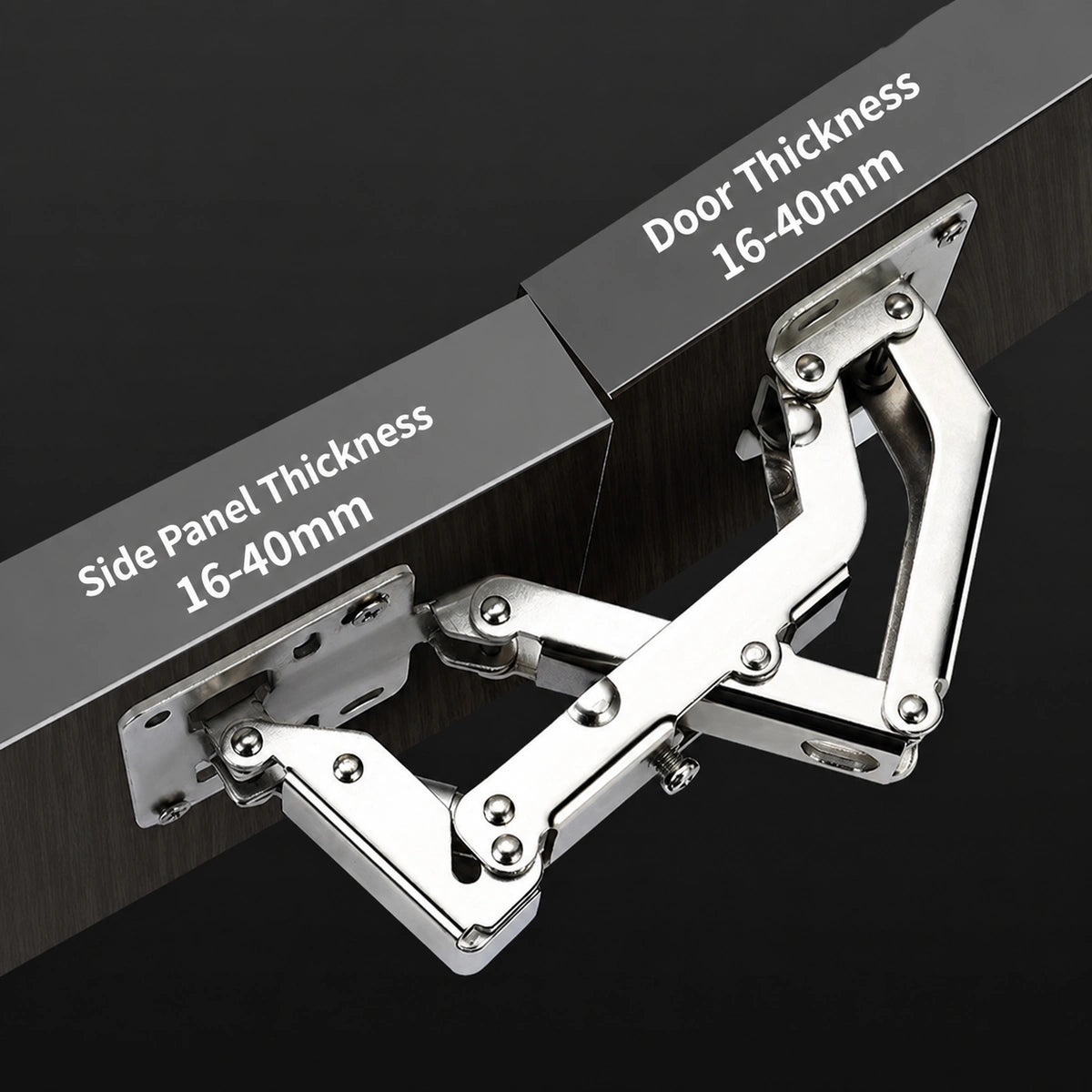

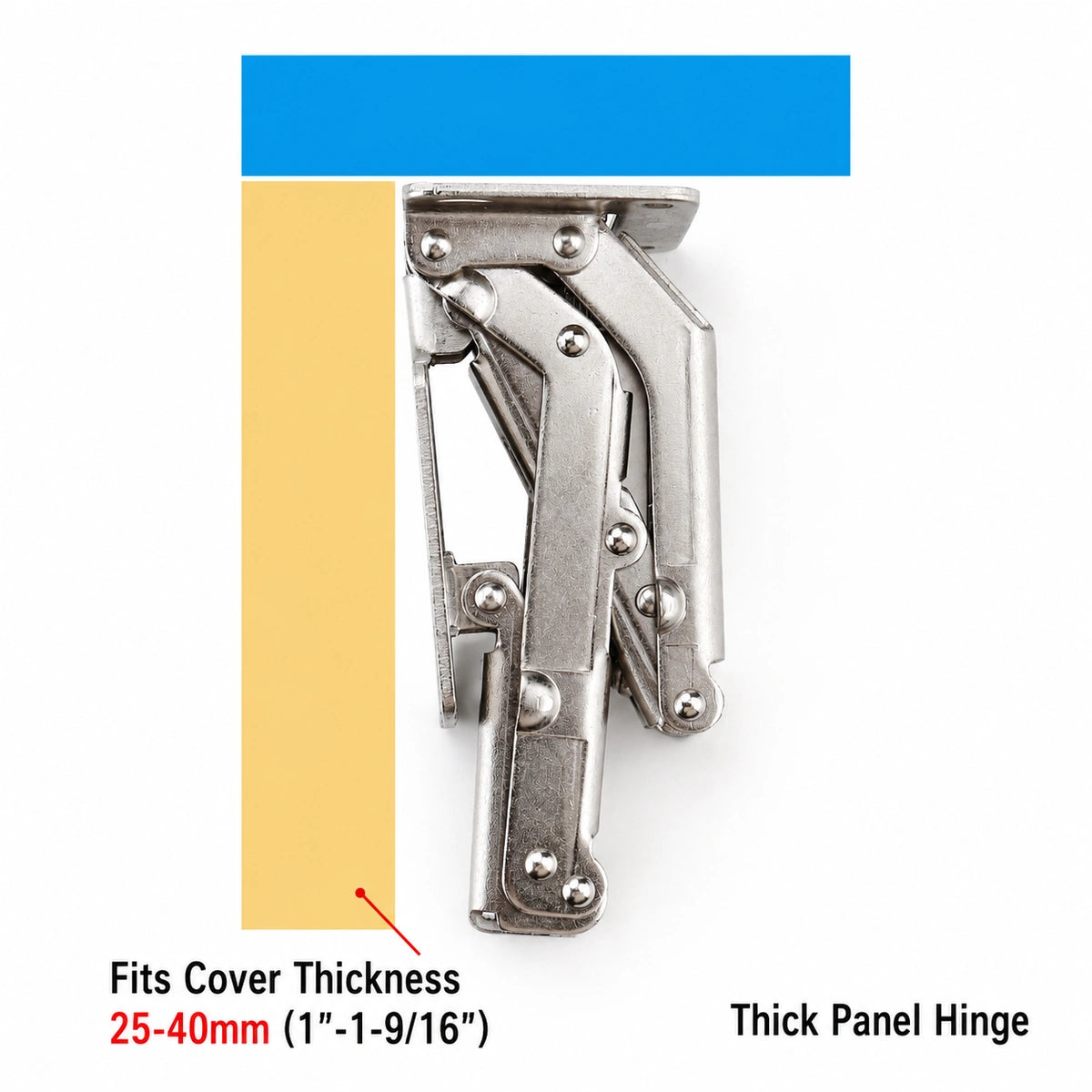

Measure both the cabinet door and side panel before ordering. Confirm panel thickness, clearance for the selected opening angle, and the mounting position for your overlay or inset configuration. No 35 mm cup bore is needed, but screw mounting holes are required.
