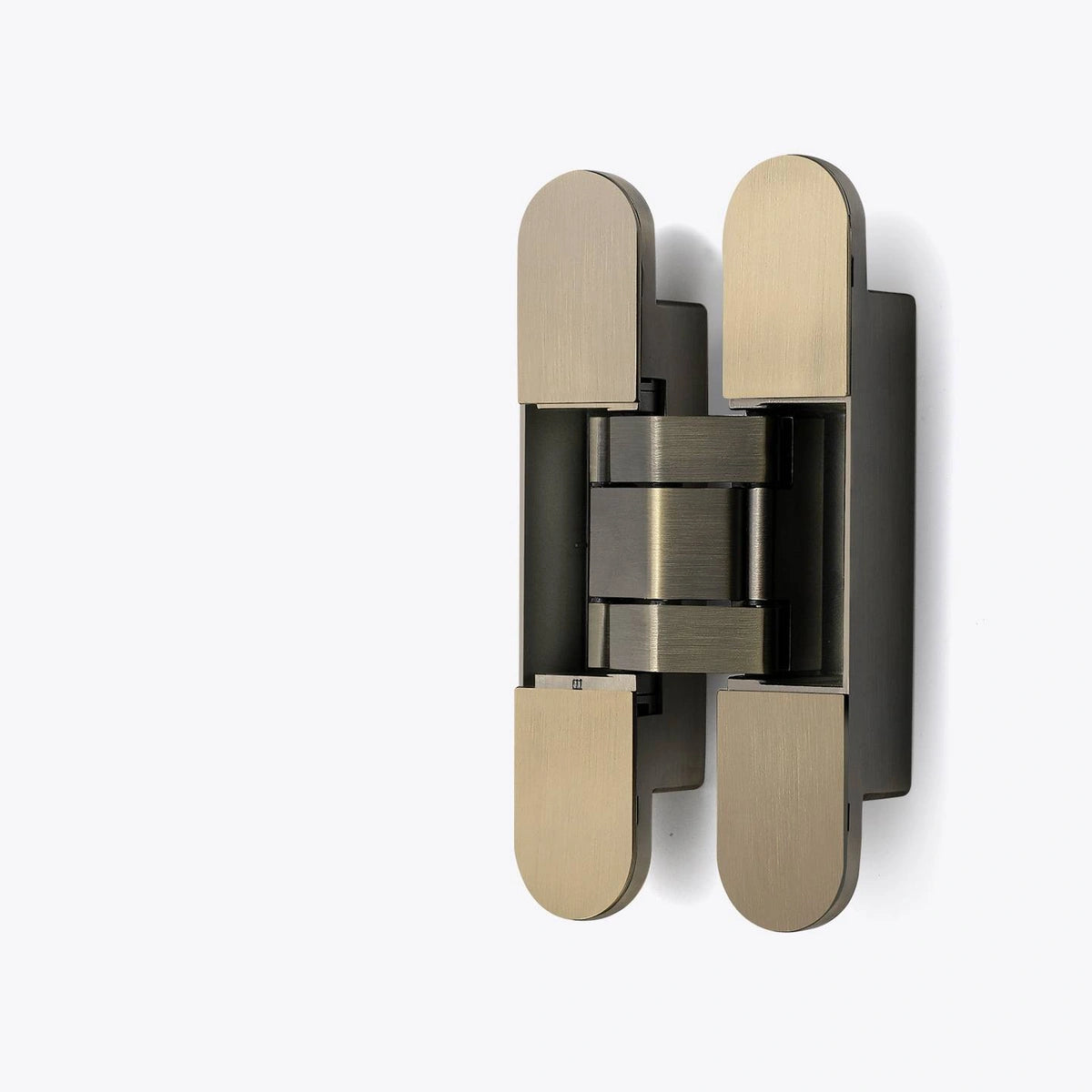

3D Adjustable Concealed Door Hinges for Interior Wood Doors

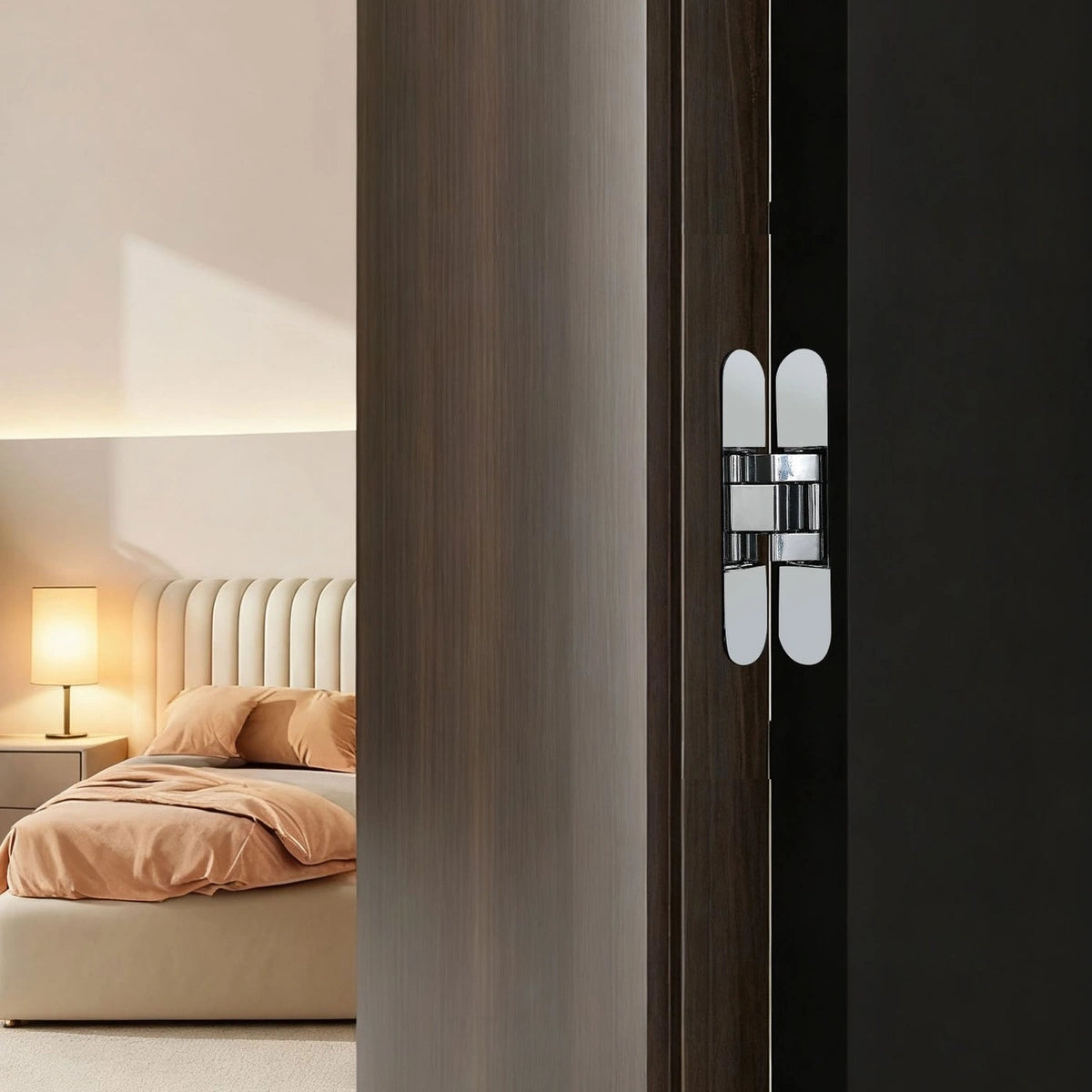

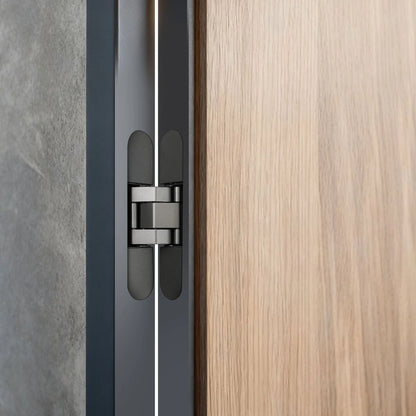

Create a clean, flush door appearance with a concealed hinge that disappears from view when the door is closed. This 3D adjustable hinge is designed for interior wood doors, hidden doors, and modern minimalist door installations that need precise alignment after mounting.

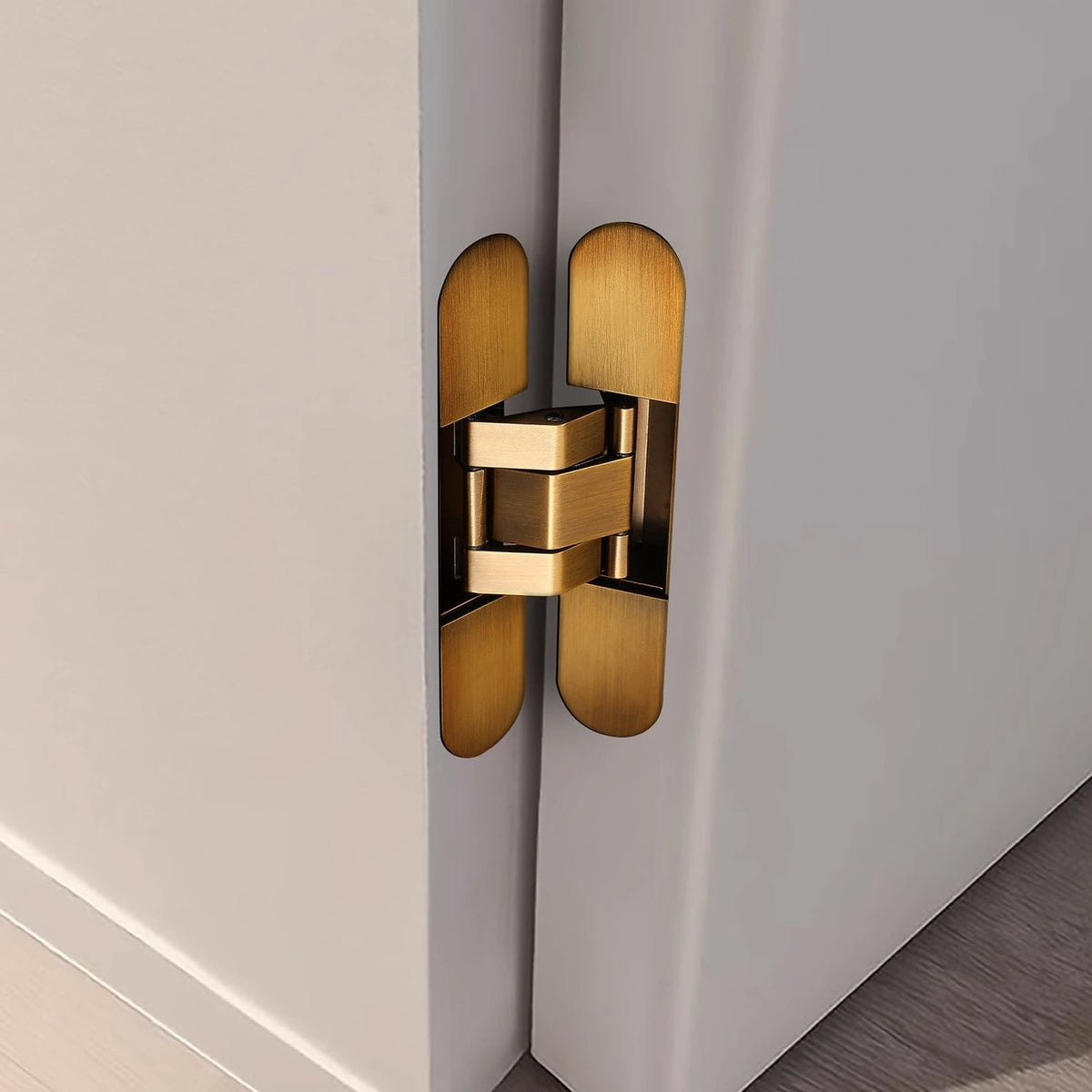

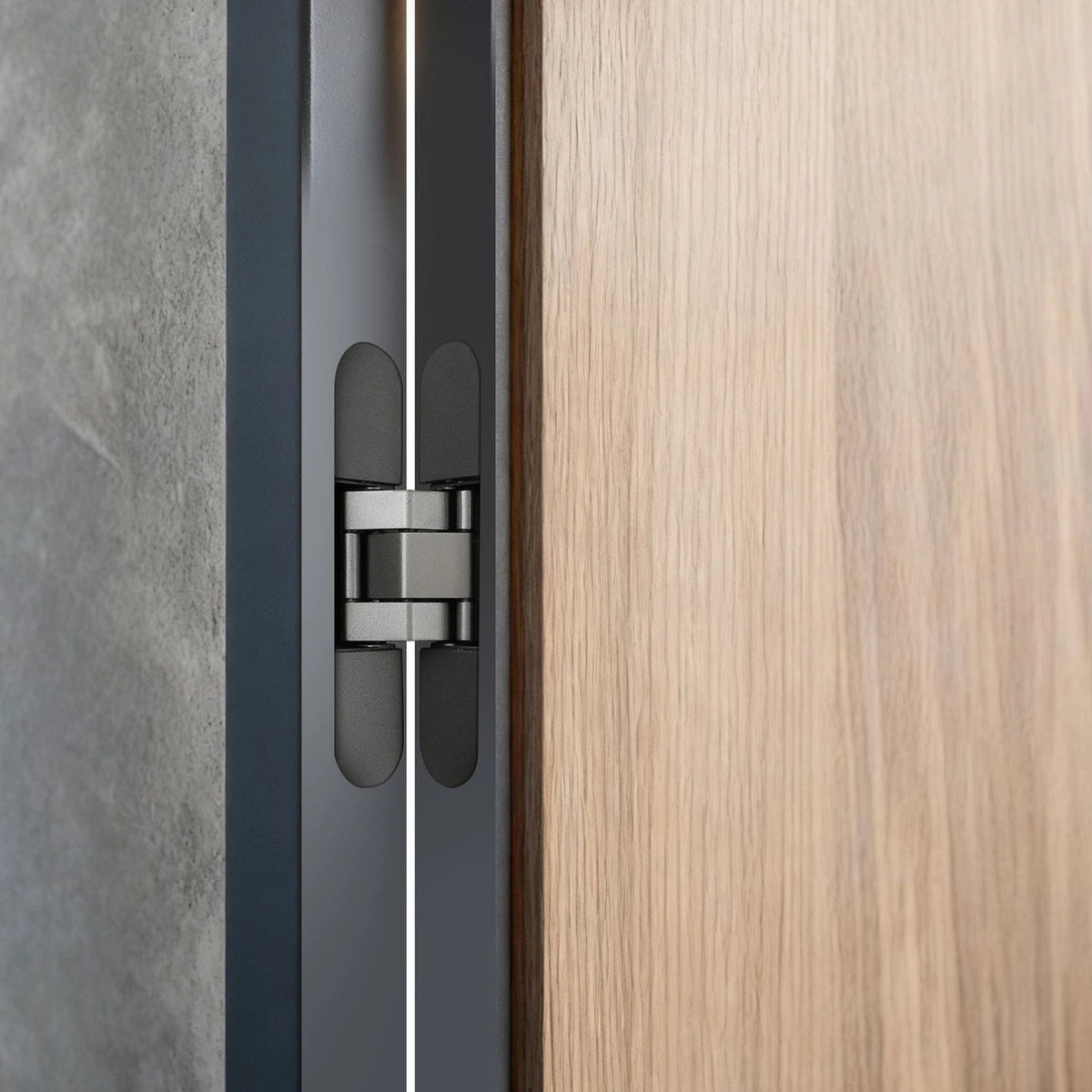

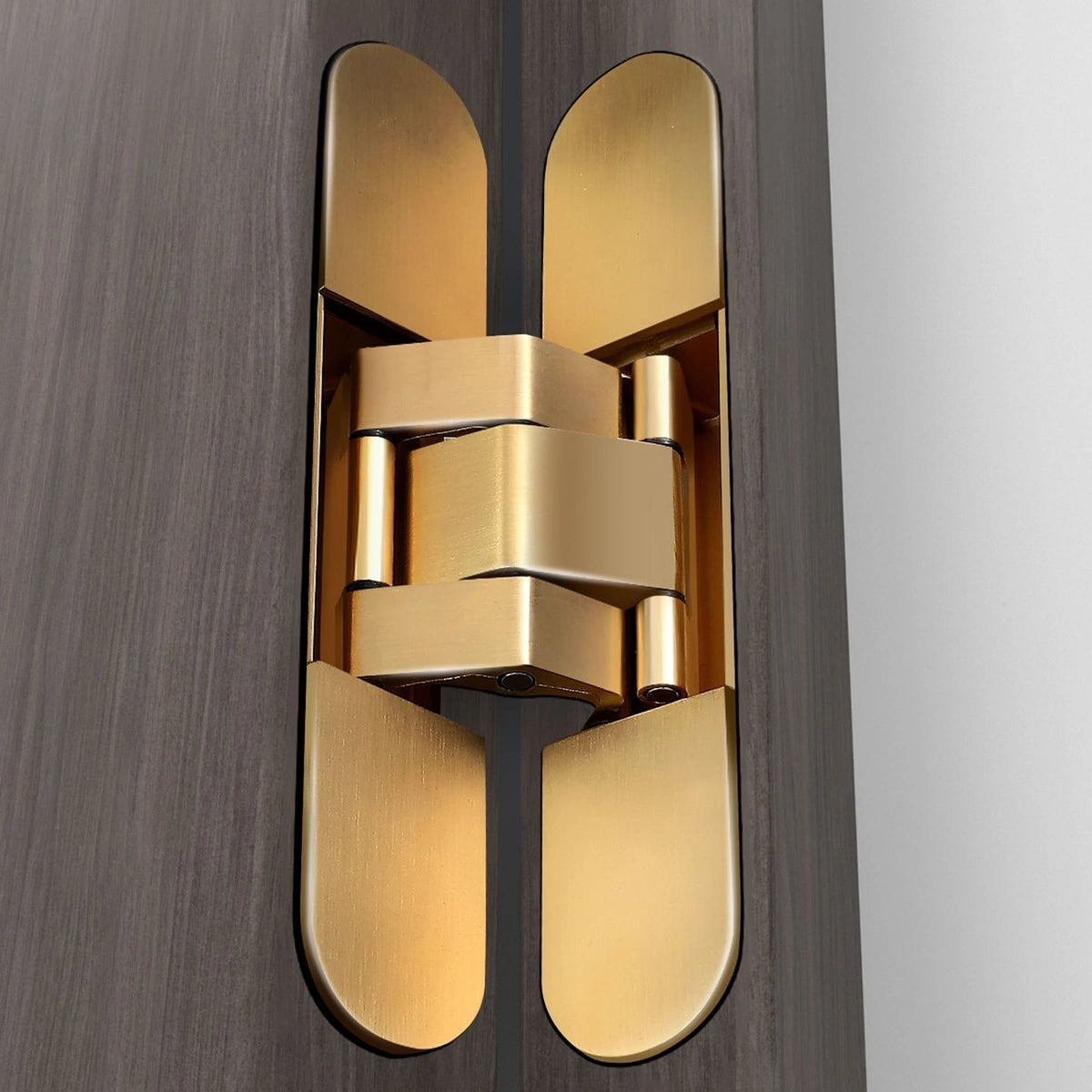

• Concealed hinge design for a streamlined, nearly invisible closed-door look

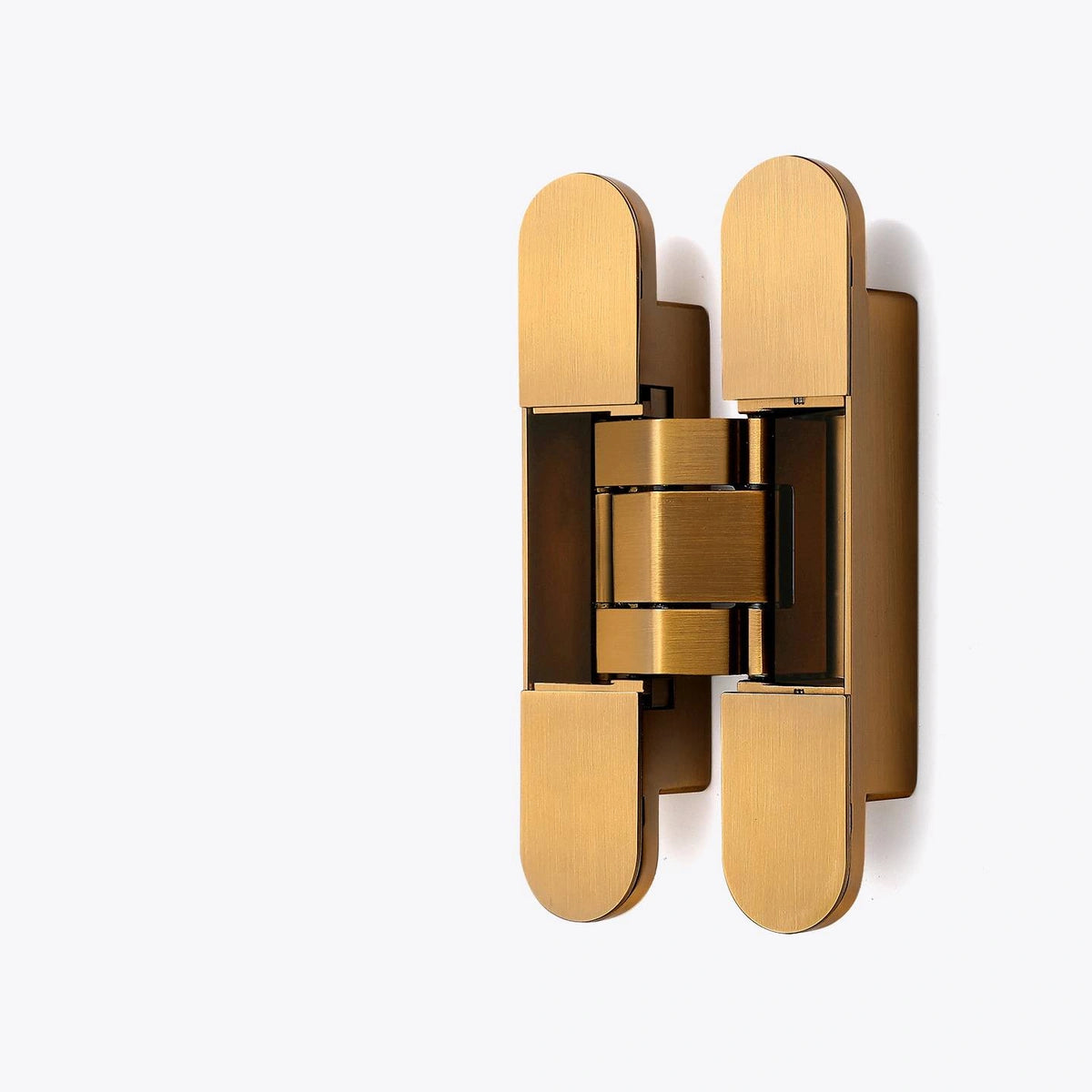

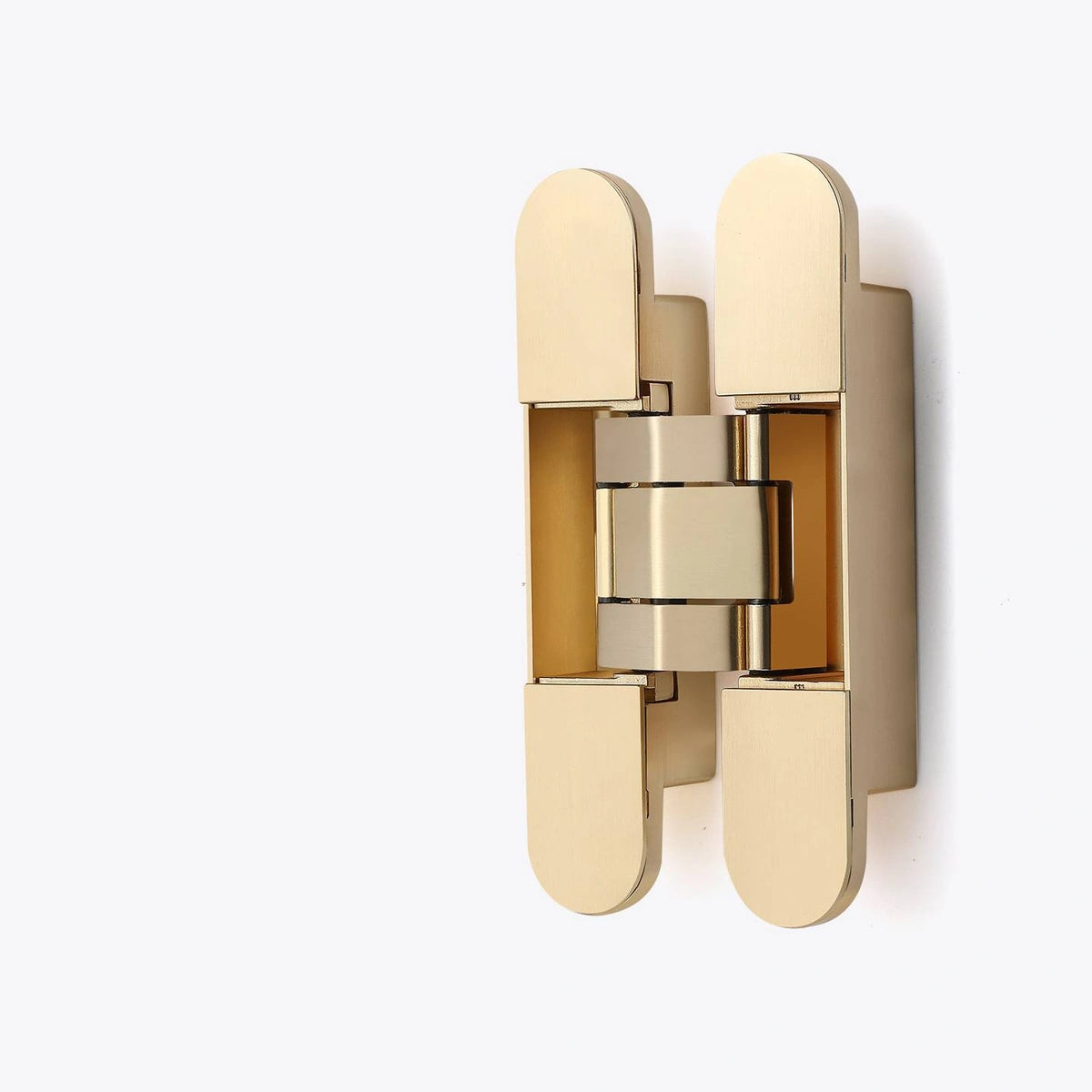

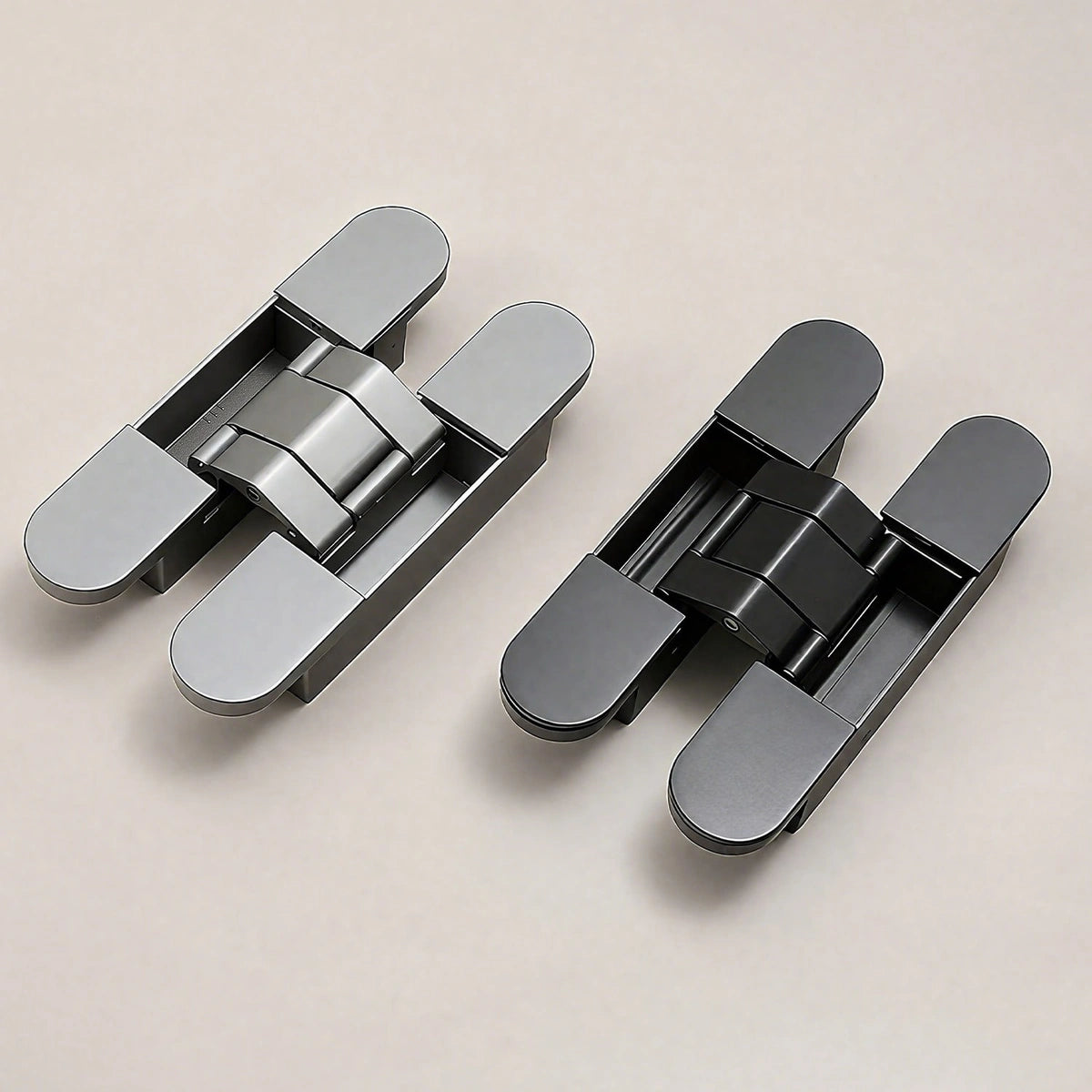

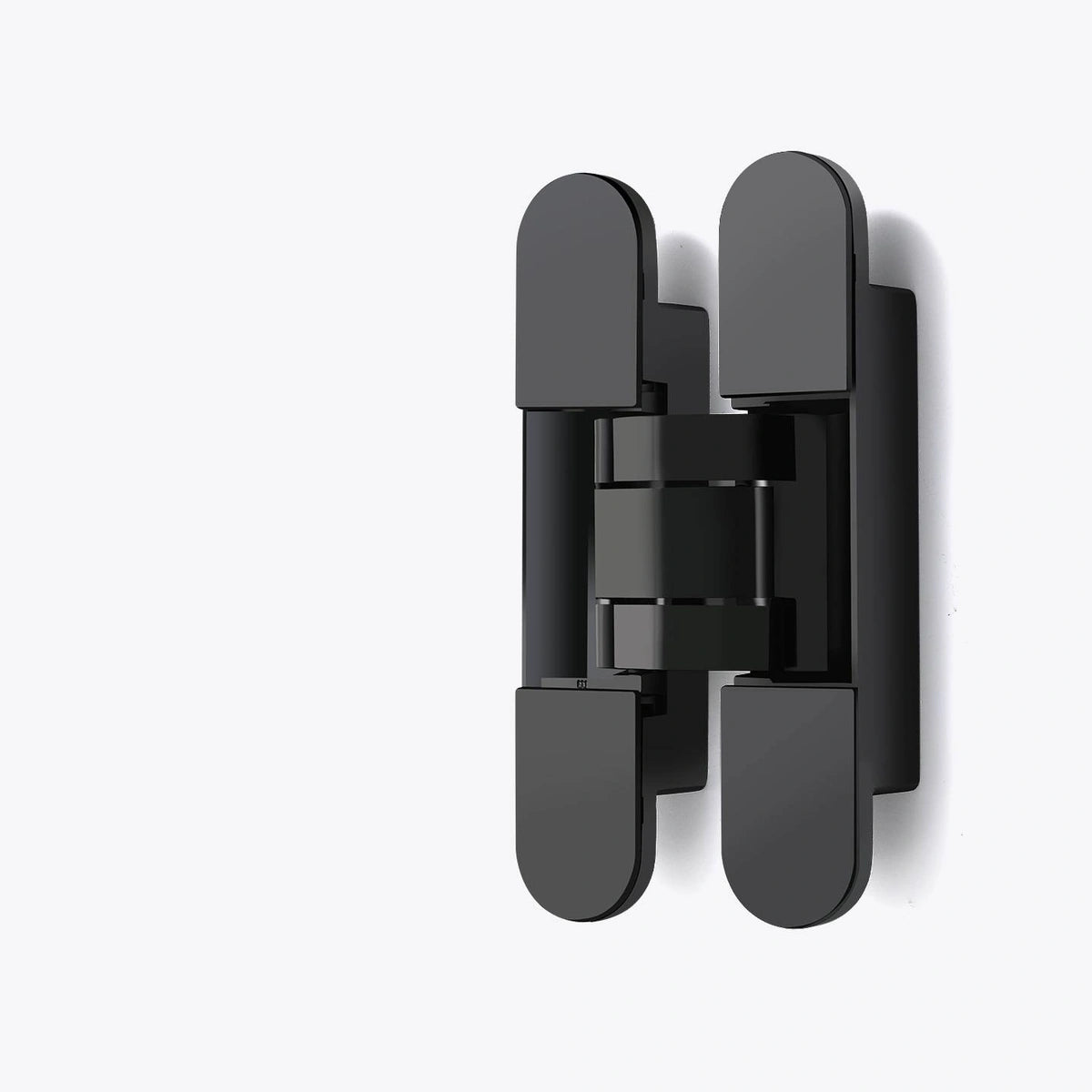

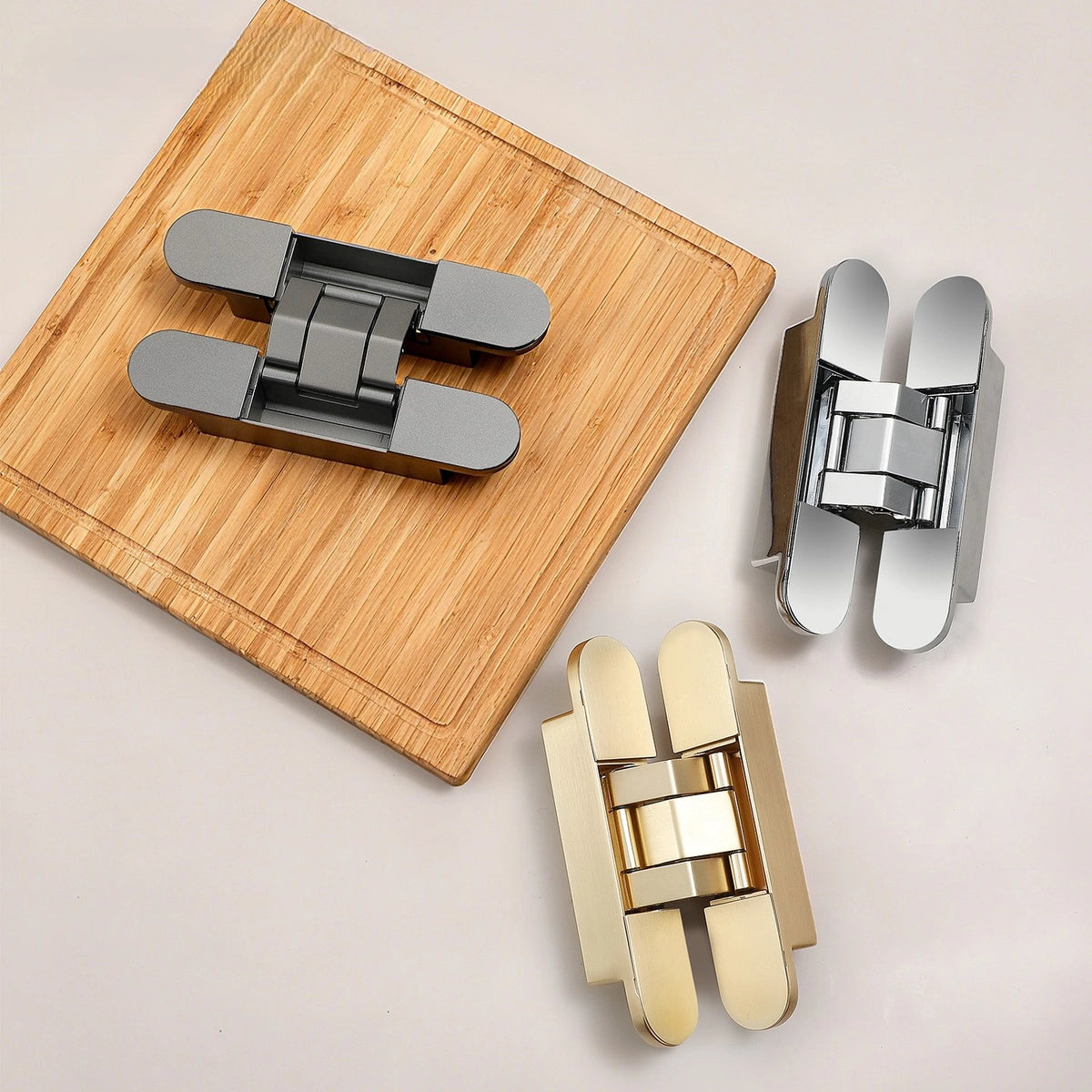

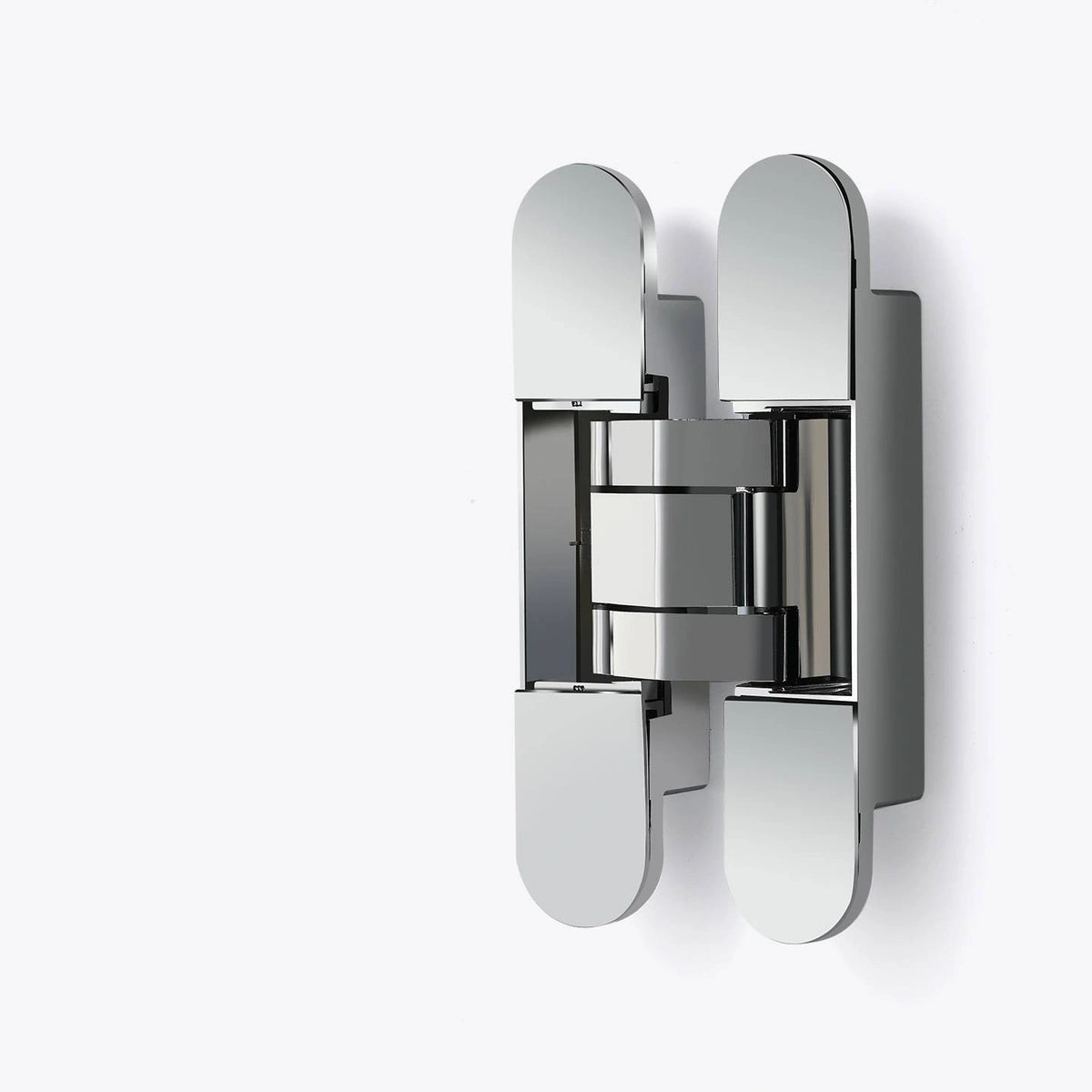

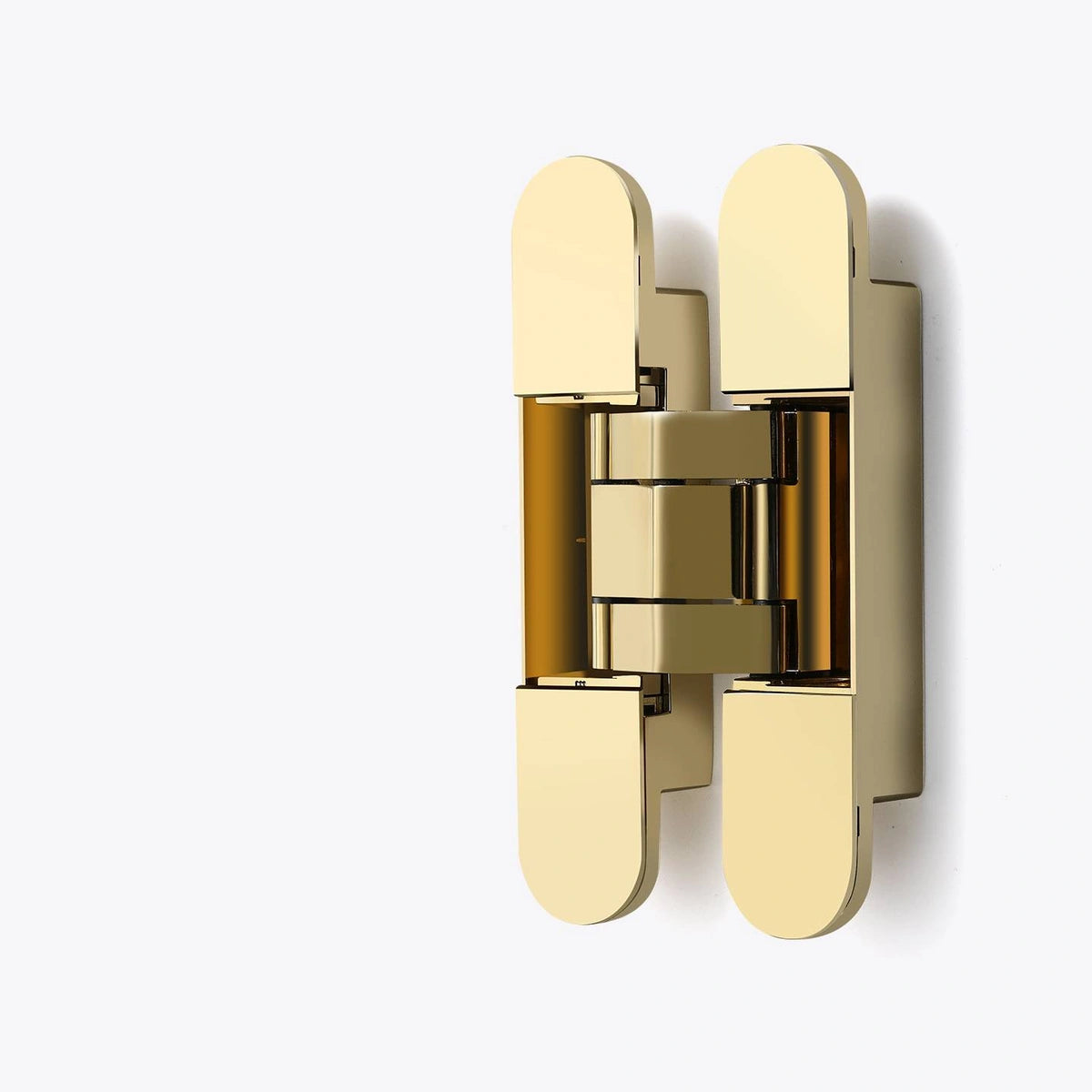

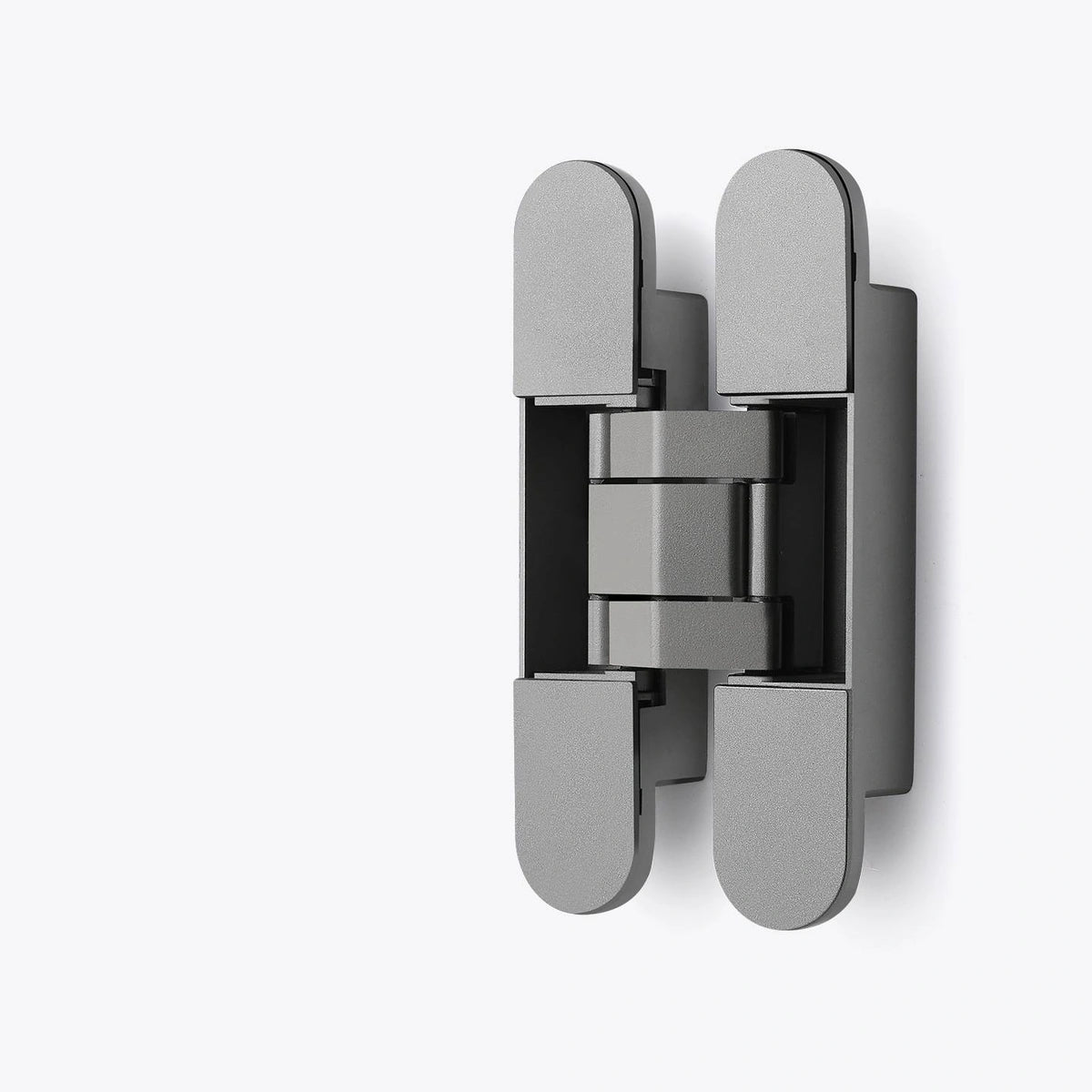

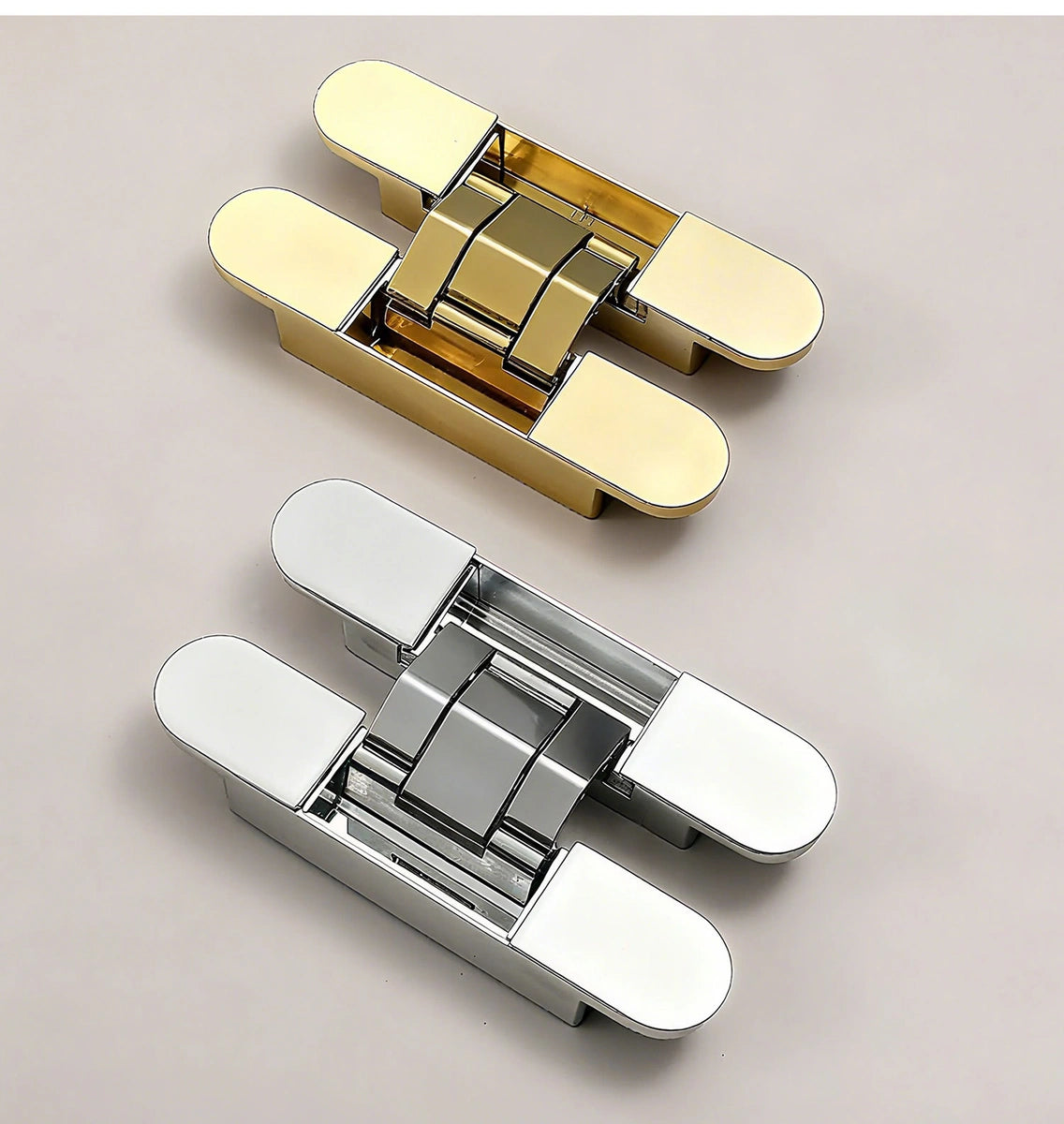

• Zinc alloy body with electroplated finish options, including black, gray, brushed brass, antique brass, green bronze, chrome, and PVD gold

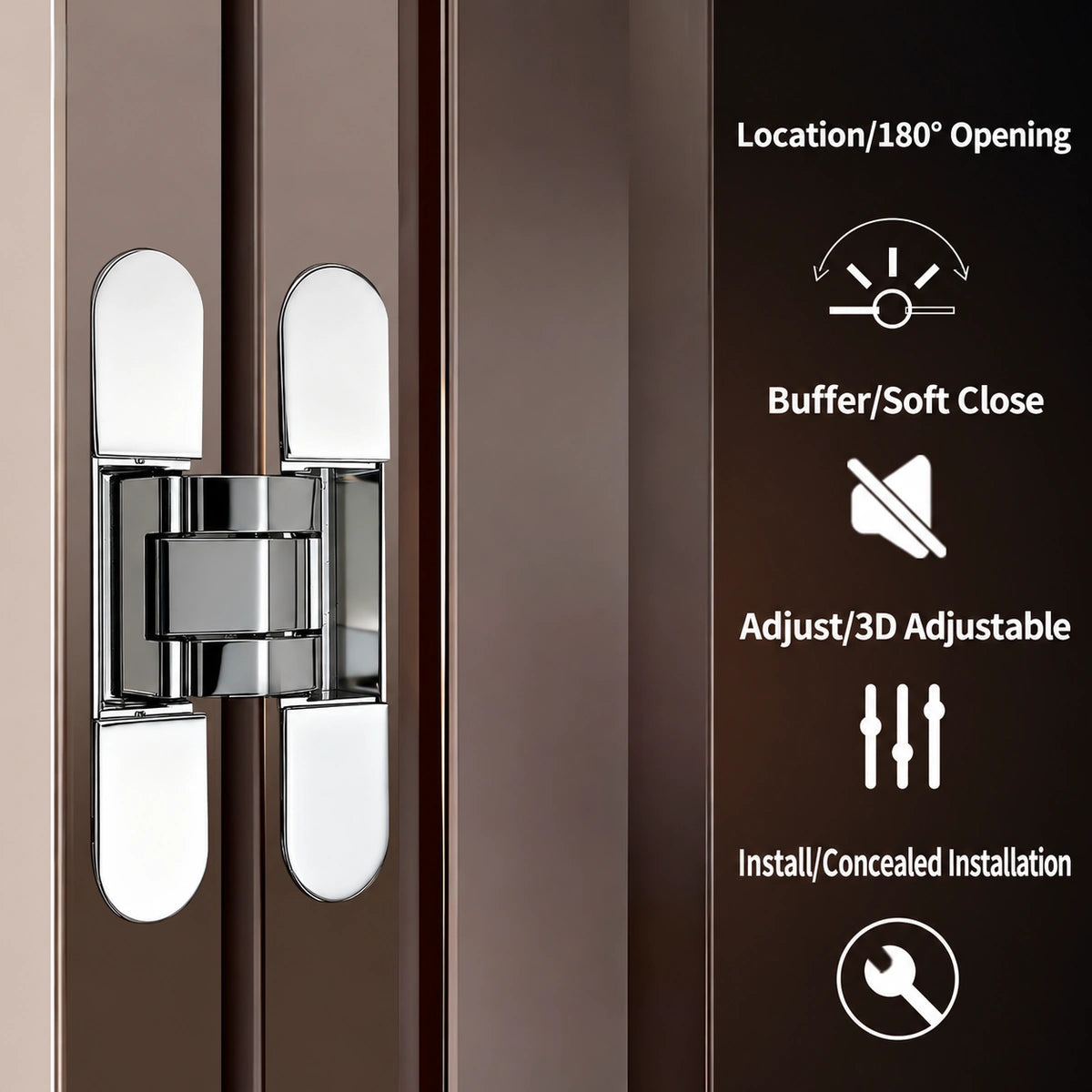

• Three-way adjustment helps correct alignment after installation
• Vertical adjustment: ±2.5 mm
• Left-to-right adjustment: ±2.5 mm
• Front-to-back adjustment: ±1.0 mm
• Approximate hinge size: 5.91 in. × 1.17 in. (150 × 29.8 mm)
• Designed for door slabs around 1.57 in. (40 mm) thick; confirm the routing template and door construction before installation

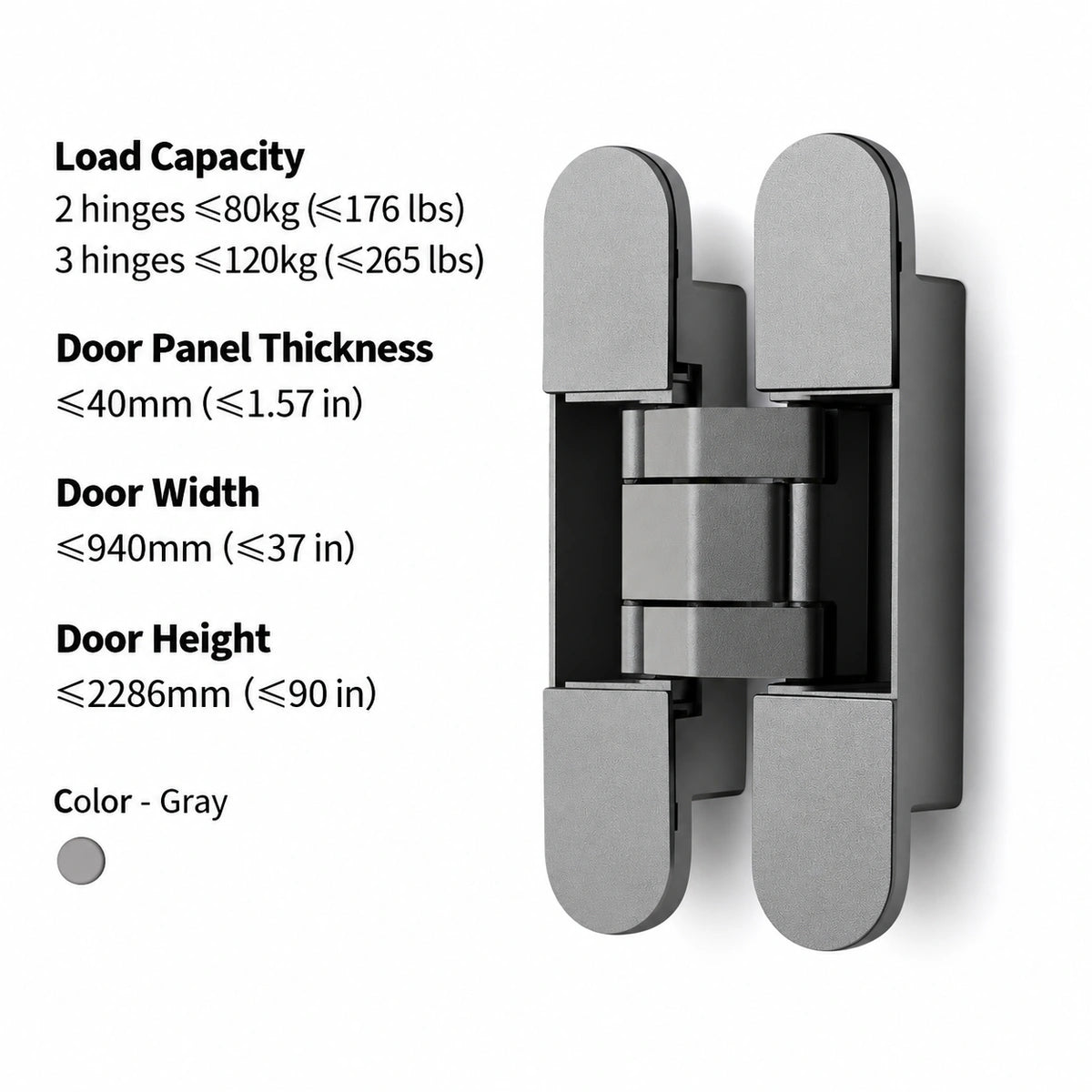

• Recommended maximum door size: 37 in. wide × 90 in. high (940 × 2286 mm)
• Rated for up to 176 lb. with two hinges or up to 265 lb. with three hinges when properly installed

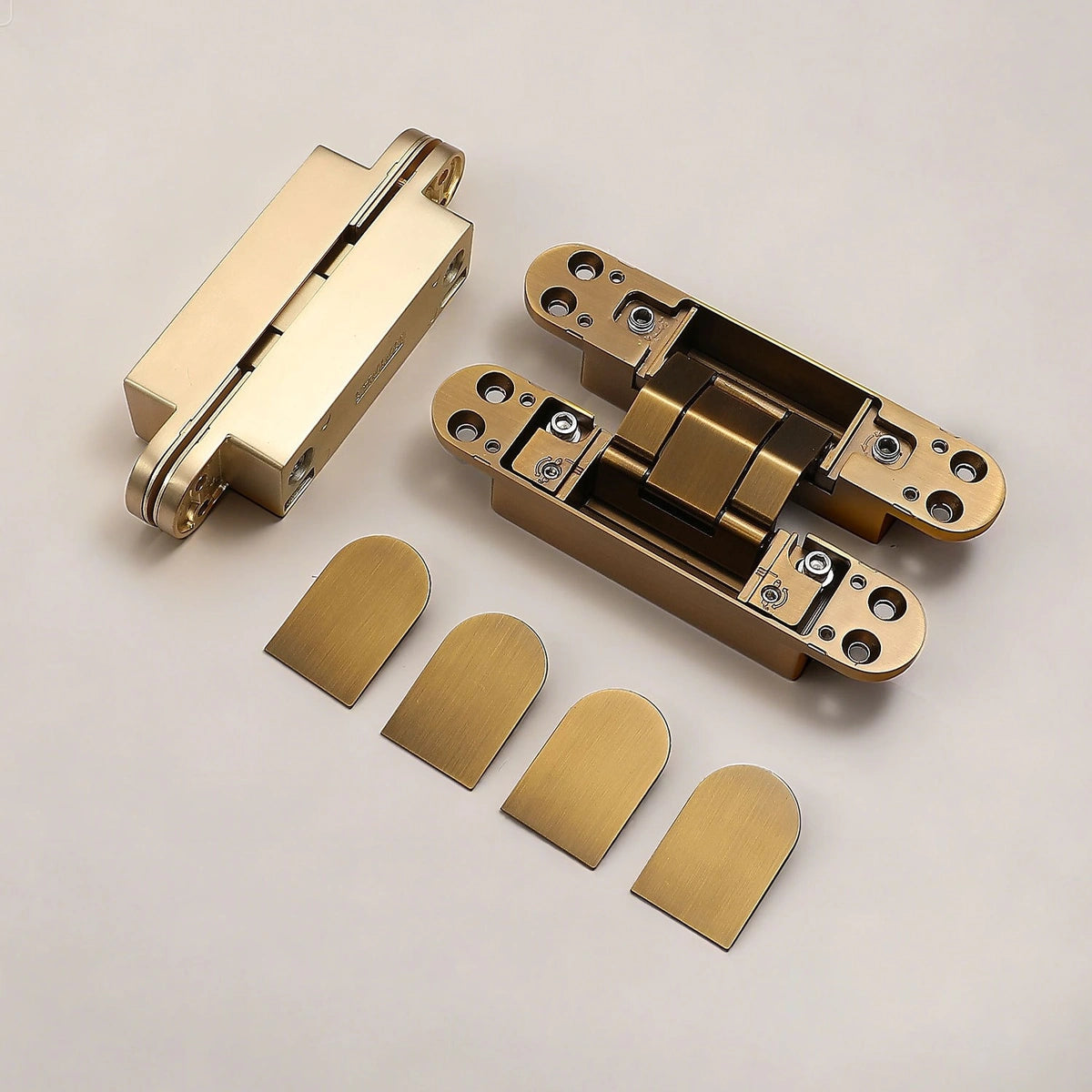

• Includes mounting screws, cover caps, and hex keys for adjustment

For best results, rout matching hinge pockets in both the door and frame, then make final alignment adjustments after the door is hung. Select the quantity needed based on the door’s size and weight.
