How to Install Cabinet Pulls Without Crooked or Misaligned Holes

One misplaced hole can leave a cabinet pull crooked, make the screws bind, or chip a finished drawer front. The reliable way to install cabinet pulls is to verify the hardware on a scrap board, lock the jig, support the back of the panel, and test the first finished piece before drilling the rest of the kitchen.

Quick answer

Measure the actual center-to-center spacing on one pull, set a cabinet hardware jig to that measurement, and test the jig on scrap wood. Clamp a backer block behind the cabinet front, mark both hole centers, and drill slowly with the drill square to the surface. Mount the first pull by hand and check it from across the room before repeating the setup.

Before you drill: check the pull and the cabinet

Do not mark every cabinet as soon as the hardware arrives. Open one pull and check these four items first:

1. Measure the center-to-center distance between the two threaded posts on the back of the pull.
2. Compare that measurement with the product listing and your drilling jig.
3. Test the included screws against the thickness of the door or drawer front.
4. Make sure the screw threads engage cleanly without bottoming out inside the pull.

Center-to-center spacing is the distance from the center of one mounting hole to the center of the other. It is not the pull's overall length. Confusing those measurements is one of the easiest ways to drill a pair of holes that the hardware cannot use.

Many Comforsyco pull listings include M4 mounting screws in two lengths, but cabinet construction varies. A screw should reach far enough to hold securely without bottoming out in the threaded post. A thick drawer box with a separate drawer front may need a longer screw made for that pull. Stop if the screw binds or the threads feel wrong.

Tools that make cabinet pull installation easier

For most doors and drawer fronts, gather:

• The cabinet pulls and their mounting screws
• A cabinet hardware jig or a rigid homemade template
• A tape measure and sharp pencil
• Painter's tape
• An awl or center punch
• A drill with a sharp bit matched to the screw clearance
• A scrap wood backer block
• Clamps with padded jaws
• A screwdriver
• A small level or straightedge
• Safety glasses

A jig does not remove the need to measure. It helps you repeat a measurement. Set it from a known reference edge, tighten every adjustable stop, and verify it on scrap material before trusting it on a finished cabinet.

What size drill bit should you use for cabinet pulls?

Use a bit that creates a clean clearance hole for the mounting screw. Do not choose the bit from the pull's center-to-center size. Hardware makers use different screws, so follow the instructions supplied with the pull when they name a bit size.

For example, some hardware instructions pair #8-32 screws with a 3/16-inch drill bit. Comforsyco pulls often use metric M4 screws, so that example is not a universal rule. Hold the screw behind the bit. The bit should be close to the screw's outside diameter without being noticeably larger.

If you are unsure, drill test holes in scrap wood of similar thickness. The screw should pass through without needing to cut its own path, while the pull should not shift around once tightened. An oversized hole may give a little adjustment, but it also makes alignment less stable and leaves less material around the hole.

How to install cabinet pulls step by step

1. Make one reference layout

Use a scrap panel for the first test whenever possible. If you do not have one, start with the least visible door or drawer after checking the layout twice. Apply painter's tape over the drilling area so the marks are easy to see and the finish is protected from pencil lines and small scuffs.

Use the same reference edges throughout the project. On a door, that may be the nearest side edge and the rail. On a drawer, it may be the left edge and the vertical centerline. Switching reference points halfway through a run can introduce small differences even when every individual measurement seems correct.

2. Set and lock the jig

Adjust the jig to the pull's actual center-to-center measurement. Then set the offset from the cabinet edge. Tighten the jig's knobs firmly and check that the movable parts cannot creep.

Place the pull over the proposed marks before drilling. This quick visual check catches reversed measurements, unexpected decorative details, and locations that feel too close to an edge. For a broader discussion of door and drawer positions, use Comforsyco's cabinet hardware placement guide.

3. Test the jig on scrap wood

Clamp the jig to a scrap board, drill both holes, and mount the actual pull. Check that:

• Both screws enter the pull without sideways pressure.
• The pull sits level and flat.
• The screw heads sit securely on the back of the board.
• The holes are not so loose that the pull rotates.

This test checks the jig, bit, screws, and pull together. A ruler alone cannot tell you whether all four will work as a set.

4. Mark the hole centers

Hold or clamp the jig firmly against the same reference edges used in your test. Mark each drilling point with a sharp pencil. Before removing the jig, use an awl to make a shallow dimple at the center of each mark.

The dimple helps the bit start in the correct spot instead of skating over paint or a smooth factory finish. Keep it small. A deep punch can crack a brittle coating or dent a thin panel.

5. Support the back of the drilling area

Clamp a flat scrap wood block tightly against the back of the door or drawer front. The backer supports the wood fibers as the drill bit exits, which reduces splintering and tear-out.

Protect the cabinet finish with a clean cloth or padded clamp jaw. If you cannot place a backer behind the panel, drill slowly and stop as soon as the tip of the bit breaks through. Then finish the hole from the back using the small pilot point as your guide. Test this method on scrap first.

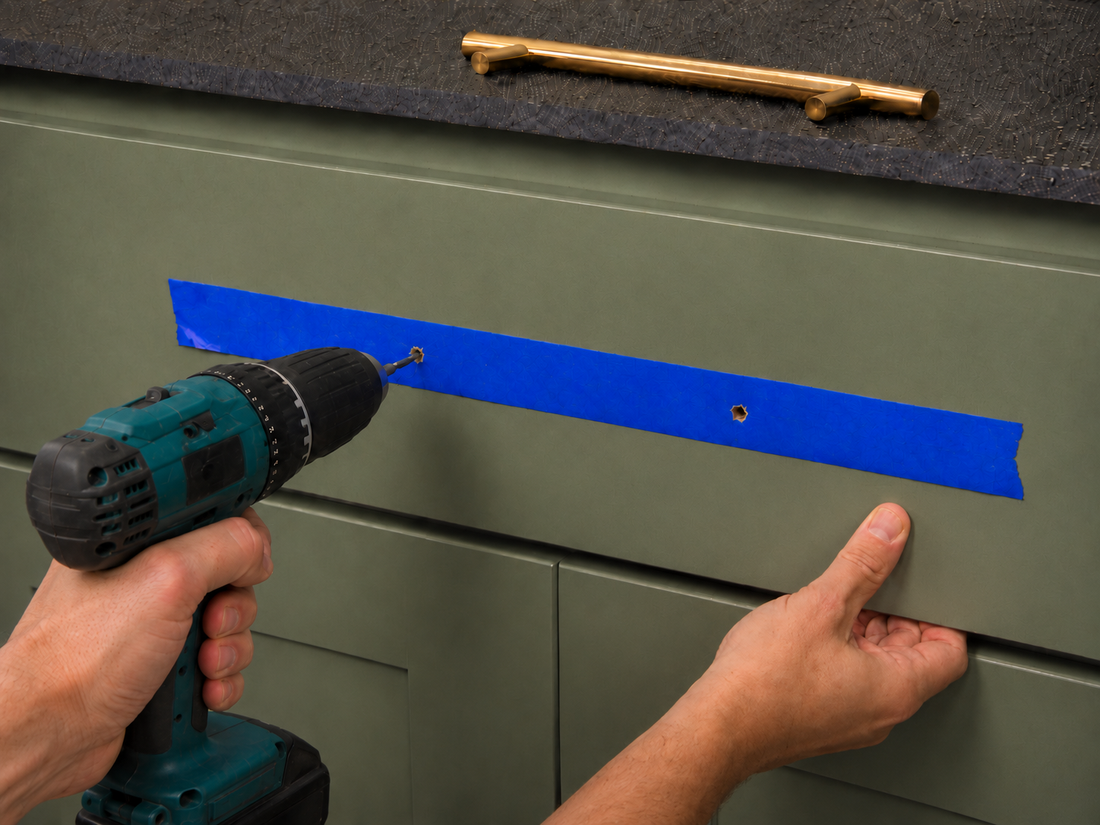

6. Drill straight and slowly

Fit a sharp bit and set the drill perpendicular to the cabinet face in both directions. Start at a low speed with light pressure. Once the bit is established, continue steadily without forcing it.

Let the bit cut. Heavy pressure can flex a small bit, shift the hole, or cause a rough exit. Pull the bit out occasionally if chips pack into a deep hole. Keep the drill running as you withdraw so it clears the opening cleanly.

Drill the first hole, reset your stance, and check the drill angle again before drilling the second. Rushing from one hole to the next is a common reason the pair ends up at slightly different angles.

7. Test-fit before drilling the rest

Remove the tape and loose dust. Insert the screws from the back and attach the pull by hand. Both screws should catch several threads without needing the pull to be twisted or forced into position.

Check the pull from normal viewing distance. Confirm that it is level, centered as intended, and comfortable to use. Open the door or drawer to make sure the screw heads do not interfere with hinges, organizers, or adjacent components.

Once this first installation looks right, repeat the same setup across the remaining cabinets.

8. Tighten by hand

Bring each screw snug with a hand screwdriver, alternating between the two sides. Stop when the pull sits firmly against the cabinet face and no longer moves.

Do not use a high-torque driver for final tightening. Overtightening can strip the threads, crush softer cabinet material, pull a screw head into the back surface, or damage a plated finish around the mounting post.

How to keep a jig from causing repeated mistakes

A jig repeats whatever setting you give it, including a bad one. Use these habits for a full kitchen installation:

• Label the jig orientation for left doors, right doors, and drawers.
• Recheck the locked settings after every few cabinets.
• Clear sawdust from the jig's reference surfaces.
• Keep the same edge against the same stop.
• Mark completed doors with a removable piece of tape.
• Check the pull visually after each installation, not only at the end.

If doors or drawer fronts differ in size, group matching pieces and verify the layout for each group. Do not assume a setting that looks centered on a narrow drawer will suit a wide one.

Common cabinet pull installation problems

The screws do not line up with the pull

First, confirm that the jig was set to the true center-to-center measurement. Then check whether the drill entered at an angle. A hole can start in the correct spot but exit off-center if the drill was tilted.

If the mismatch is very small and the screw head will fully cover the hole, you may be able to ease the clearance hole slightly in the needed direction with a round file. Remove only a small amount of material and test often. Do not enlarge the visible front edge.

For a larger error, stop before trying to force the hardware. A repair may require a glued wood plug, touch-up work, and redrilling after the repair cures. Painted or high-gloss fronts often need a cabinet professional for an invisible result.

The pull looks crooked even though the holes fit

Loosen both screws slightly, level the pull, and retighten them evenly. If the holes are too large, the pull may rotate during use. Thin hardware washers on the concealed back can improve bearing support, provided they do not interfere with the cabinet and are suitable for the screw.

The back of the panel splintered

Small hidden fibers can often be trimmed carefully, but a chipped front finish is harder to repair. For the remaining cabinets, use a sharper bit, clamp the backer more tightly, reduce feed pressure near the exit, and confirm that the drill is square.

The screw is too short or too long

Measure the total material thickness and the usable thread depth in the pull. Buy the same thread type and diameter in the correct length. Do not substitute a screw merely because it fits through the hole. The wrong thread can damage the pull permanently.

A screw turns but never tightens

Stop before the threads deteriorate further. Check whether the screw is the correct type and whether it is bottoming out. Test a known-good screw from the same set. If the threaded insert in the pull is damaged, contact the seller rather than using adhesive as a permanent fix.

When a template is enough and when to buy a jig

Heavy cardstock can work as a marking template for a small project with one pull size, but use it only to mark the hole centers. Cardstock holes widen too easily to guide a drill bit accurately. If you want to drill through the template, use rigid acrylic or plywood with clean guide holes, or choose a jig with metal drill bushings. Register it against the same cabinet edges each time.

An adjustable metal or durable plastic jig is more useful when the project includes several pull sizes, many cabinets, or future hardware work. Choose one with clear measurement markings, firm stops, and drill guides that do not wobble. Always verify its scale with a tape measure or caliper before drilling the first cabinet.

Final installation checklist

Before moving from one cabinet to the next, confirm:

• The jig is tight and facing the correct direction.
• The hole spacing matches the actual pull.
• The drill bit suits the supplied screw.
• A backer block is clamped behind the work.
• The drill is square to the cabinet face.
• The pull was test-fitted before the batch continued.
• The screws are snug, not overtightened.

Once the first pull is straight and secure, leave the jig locked and repeat the same reference points on matching doors or drawers. Recheck the setting whenever the cabinet size changes. If you are still selecting hardware, Comforsyco's cabinet handles and pulls list center-to-center measurements for comparing replacement options.
