Cabinet Pull Projection and Finger Clearance: What Feels Comfortable?
Introduction
A cabinet pull can look generous in a product photo and still feel cramped once it is installed. Your fingertips may fit behind the bar, but your knuckles rub the drawer front. A pull may feel comfortable on a flat slab door, then become awkward on a Shaker drawer because the raised rail sits directly behind your fingers.

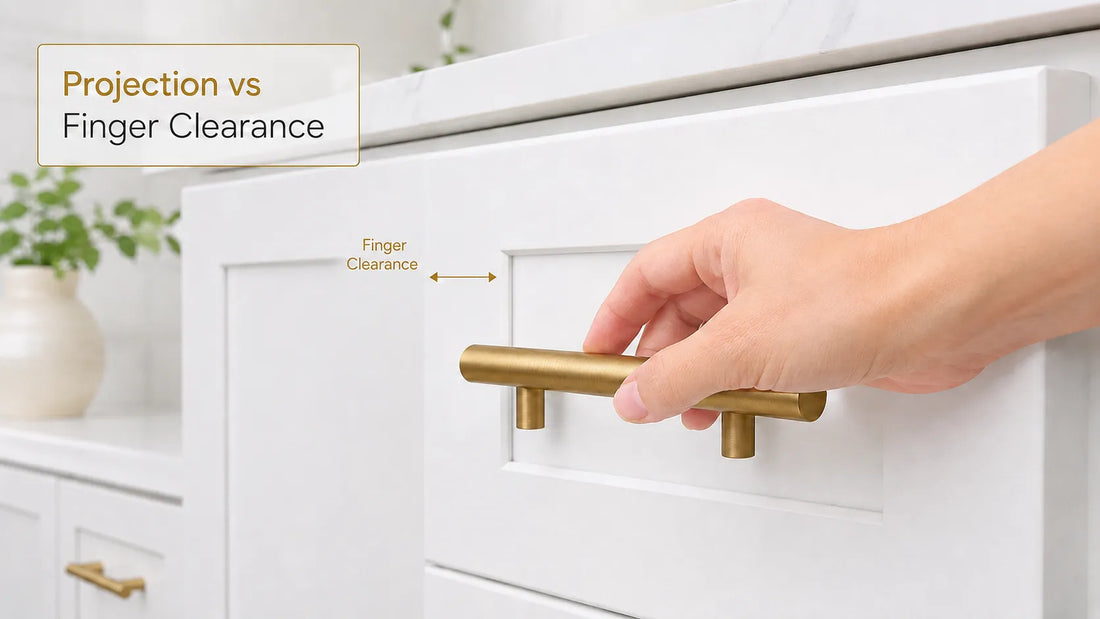

The missing detail is often finger clearance. Projection tells you how far the hardware extends from the cabinet surface. Finger clearance tells you how much usable room your hand actually has behind, under, or inside the pull. They are related, but they are not interchangeable.
The practical goal is simple: leave enough room for the hand without putting the pull in the path of clothing, people, or another cabinet door.
Table of Contents
- Quick Answer
- Projection and Finger Clearance Are Different Measurements
- How to Measure the Space Your Hand Can Use
- Why the Same Pull Feels Different on Different Cabinets
- When More Projection Creates a Different Problem
- How Common Pull Shapes Use Space
- A Practical Sample Test Before Ordering
- What to Check on an Online Product Page
- Common Mistakes
- FAQ
Quick Answer
Do not choose a cabinet pull by projection alone. Check the narrowest usable space behind the grip, the distance between the posts, the thickness of the bar, and anything on the cabinet front that enters the path of your fingers.
There is no single projection that feels comfortable for every pull or every hand. A slim bar with open space behind it can feel easier to use than a thicker pull with a larger overall projection. A Shaker rail, deep backplate, wide mounting post, or curved return can reduce the space that matters.
Before ordering a full set, test one pull on the heaviest drawer and on the cabinet style where it will be installed. Open it with one hand, check whether your knuckles touch the front, and make sure the ends do not catch clothing or strike an adjacent door.
Projection and Finger Clearance Are Different Measurements
The cabinet hardware industry uses several dimensions that can look similar on a product page.
| Measurement | What It Describes | Why It Matters |
|---|---|---|
| Projection | Distance from the cabinet face to the farthest outward point of the hardware | Shows how far the pull enters the room or walkway |
| Finger clearance | Usable space between the cabinet face and the back or underside of the grip | Determines whether fingers and knuckles can fit comfortably |
| Center-to-center | Distance between the centers of the mounting holes | Determines whether a replacement pull fits existing holes |
| Overall length | Full end-to-end length of the pull | Affects visual scale and possible contact with nearby surfaces |
| Grip opening | Usable length between posts, returns, or decorative ends | Determines how many fingers can fit on the grip |
| Bar thickness | Thickness or diameter of the part you hold | Changes how far your fingers must wrap around the pull |
Product specifications often separate the pull's total projection from the open space behind the grip. That distinction matters because the outer depth of the hardware is not a shortcut for comfort.
Imagine two pulls with the same one-inch projection. One uses narrow posts and a slim round bar. The other has a thick rectangular grip and wide decorative bases. The second pull may leave much less room for fingers even though the listed projection is identical.
How to Measure the Space Your Hand Can Use
You can check an installed pull with a ruler or caliper. For an online product, use the dimension drawing and side-view photos. If the listing does not show the underside or the distance behind the grip, ask the seller for that measurement.
Measure Total Projection
Place the ruler perpendicular to the cabinet face and measure to the outermost point of the pull. This tells you how far the hardware protrudes. It does not tell you how much space is behind the grip.
Find the Narrowest Finger Clearance
Measure from the cabinet surface to the closest point on the underside or back of the grip. Check more than one location. A curved pull may have enough space in the middle and much less near the posts.
For cup pulls, the important space is inside the cup rather than behind the outer shell. For edge and recessed pulls, measure the lip or pocket your fingertips actually enter.
Check the Usable Grip Opening
Measure the open length between the two posts, end returns, or decorative features. A long pull can still have a short usable grip if large bases occupy both ends.
Also check whether the bar is thick enough to fill most of the opening. A thick bar is not automatically uncomfortable, but it requires more room for the fingers to curl around it.
Include the Cabinet Profile
The product drawing normally assumes a flat mounting surface. Your cabinet may not be flat where your hand travels.
On a Shaker drawer, the raised top rail can sit behind a pull mounted on the recessed center panel. A backplate may reduce the remaining gap. A routed edge, applied molding, or thick drawer overlay can create the same problem.
Use a straightedge across the nearest raised surface and measure the clearance from that point, not only from the recessed panel where the screws enter.
Why the Same Pull Feels Different on Different Cabinets
A Shaker Rail Can Take Away Usable Room
A pull mounted on a recessed Shaker panel may have enough clearance according to the product drawing, but the fingertips pass over the raised rail when the drawer opens. If the rail is close behind the bar, knuckles or fingernails can rub it.
Temporarily position one sample on the exact door or drawer style before drilling the full project. Test the path of the fingers as well as the appearance from the front.
A Heavy Drawer Needs a More Secure Grip
A light upper door may open with two fingertips. A deep drawer filled with cookware may require the whole hand. The same shallow pull can feel acceptable on the door and frustrating on the drawer.
This guide does not assign load ratings to hardware. Opening effort depends on the drawer slides, alignment, contents, and pull placement as well as the pull itself. Test the most difficult drawer rather than the empty display sample.
Long Fingernails Change the Approach Angle
Long nails limit how directly the fingertips can enter a shallow space. Some users approach from below or use the pads of the fingers instead. A pull with a generous-looking projection may still force the nails against the cabinet front if the underside is tight.
The useful test is not whether one fingertip fits. Check whether the drawer can be opened naturally without turning the wrist or using the nail as a lever.
Rings and Larger Knuckles Need More Room Near the Surface
A ring can strike the bar or cabinet before the fingers are fully behind the pull. Larger knuckles may contact the drawer even when the fingertips have enough space. Smooth edges and open grip paths matter as much as the raw dimension.
Limited Grip Makes Shallow Hardware Less Forgiving
If arthritis, pain, weakness, or reduced dexterity affects the hand, prioritize a pull that works with one hand without a tight grasp, a narrow pinch, or an awkward wrist turn.
Use this as a practical comfort test, not as a claim that every residential cabinet must meet the same accessibility requirements. The hardware should not force the user to pinch a narrow edge or twist the wrist just to open an ordinary drawer.
When More Projection Creates a Different Problem
More room behind the grip is helpful only until the hardware starts interfering with the room.
Clothing Can Catch on Open Ends
T-bar and bar pulls with extended ends can catch apron ties, pockets, loose sleeves, or headphone cords. Projection contributes to the risk, but end shape and location matter too. A closed return or rounded end is less exposed than a bar that extends beyond its posts.
Check pulls beside a sink, range, island walkway, and other places where the body passes close to the cabinet. The cup pull versus bar pull guide covers the broader comparison between those two shapes.
Adjacent Doors Can Hit Each Other
At an inside corner, a pull on one door may strike the face, glass, or hardware of another door. Two doors that meet at ninety degrees deserve a full opening test. Check the pull ends as well as the farthest point of the grip.
The same issue can appear on paired doors, appliance panels, pull-out trash cabinets, or drawers below a projecting countertop edge.
Deep Pulls Enter Narrow Walkways
A pull that projects farther may be comfortable in the hand but annoying beside a tight island or in a small bathroom. Walk past a temporary sample with the adjacent drawers and doors closed. Do not judge the clearance only while standing directly in front of it.
When the surface needs to stay nearly flat, compare recessed and flush cabinet pulls. These reduce projection, but the recess still needs enough depth and a comfortable edge for the fingers.
How Common Pull Shapes Use Space
The categories below are useful only as a starting point. The exact profile matters more than the style name.
| Pull Type | Space to Inspect | Common Problem |
|---|---|---|
| Standard bar pull | Clearance behind the bar and between posts | Knuckles touch the front or open ends catch clothing |
| T-bar pull | Space behind the stem and exposure of both ends | Small grip area or snagging at the ends |
| Cup pull | Internal pocket height and depth | Fingernails or larger fingers cannot enter comfortably |
| Knob | Space behind the head and shape of the neck | Requires pinching or rotates in use |
| Edge pull | Depth and smoothness of the lip | Fingertips scrape the edge or lack leverage on a heavy drawer |
| Recessed pull | Pocket depth, edge radius, and opening width | Looks flush but provides too little usable grip |
If you are deciding specifically between low-profile styles, use the cabinet edge pull guide. Keep the current decision focused on the hand space and collision risks of the exact sample.
A Practical Sample Test Before Ordering
Paper templates are useful for overall size and collision checks, but paper cannot show grip comfort. Order one physical sample when possible.
1. Use the Actual Cabinet Profile
Test the sample on the same style of door or drawer front. A flat scrap board cannot reproduce a raised Shaker rail unless you build that profile into the test.
If you are replacing hardware and the sample matches the existing holes, install it on one representative drawer. Otherwise, mount it on a scrap panel with the same thickness and surface profile.
2. Test the Hardest-Working Drawer
Use a loaded cookware drawer, trash pull-out, pantry drawer, or another front that takes noticeable effort to open. If the sample works there, it is more likely to feel comfortable on lighter doors.
3. Open It the Way You Live
Try a full-hand grip, two fingers, and one hand while the other hand is occupied. Ask every regular user to try it. Pay attention to knuckle contact, sharp edges, pinching, and wrist position.
Do not force a grip that feels unnatural just because the pull looks right.
4. Check the Room Around It
Open adjacent doors and drawers fully. Walk past the hardware. Check loose clothing near exposed ends. Look at any countertop overhang, wall, appliance, or handle that enters the swing path.
5. Inspect the Cabinet After Several Openings
Look for fresh rub marks, fingerprints where the hand misses the grip, or movement at the mounting posts. If fingertips repeatedly brush the cabinet front, the finish may show wear sooner in that area.
What to Check on an Online Product Page
Before buying a full set of cabinet handles and pulls, look for:
- A side-view drawing with overall projection
- A separate clearance or inside-depth measurement
- The distance between posts or returns
- Bar thickness or diameter
- Center-to-center spacing
- Overall length, including extended ends
- Backplate or mounting-base dimensions
- Door or drawer thickness requirements
- Screw size and included screw length
- Photos showing the underside and installed profile
If the listing provides only overall length and center-to-center spacing, it does not contain enough information to judge finger clearance. Ask for a drawing or order one sample.
For pull length and drawer proportion, use the cabinet pull size guide. Size and finger clearance affect each other, but they answer different questions.
Common Mistakes
Treating Projection as the Gap Behind the Pull
Projection includes the thickness of the grip. Finger clearance does not. A thick grip can use much of the projected depth.
Measuring from a Recessed Panel Only
If the fingers pass over a Shaker rail or molding, measure from the raised surface that the hand approaches.
Testing an Empty Drawer
A shallow pull may feel fine before the drawer is loaded. Test the drawer in normal use.
Choosing the Lowest Profile for Every Cabinet
Low projection can help in a narrow walkway, but it may reduce grip comfort. Use the cabinet location and opening effort to decide where low-profile hardware belongs.
Ordering the Full Count from a Front-View Photo
Front views hide the underside, post shape, and grip path. One sample gives better information than another hour of comparing styled images.
FAQ
What Does Cabinet Pull Projection Mean?
Projection is the distance from the cabinet or drawer face to the farthest outward point of the pull. It shows how far the hardware protrudes, not the exact amount of space available for fingers.
Is Projection the Same as Finger Clearance?
No. Finger clearance is the usable gap behind, under, or inside the grip. Projection also includes the thickness and outer shape of the hardware.
How Much Finger Clearance Should a Cabinet Pull Have?
There is no single dimension that suits every hand and pull shape. Check the narrowest gap, bar thickness, grip opening, cabinet profile, and drawer opening effort. A physical sample on the actual cabinet is the most reliable test.
Why Do My Knuckles Hit the Cabinet?
The clearance may be too shallow, the bar may be thick, or a raised rail may enter the grip path. The pull can also be mounted where the hand approaches at an awkward angle.
Are Low-Profile Cabinet Pulls Uncomfortable?
Some are. A low-profile pull can work well on a light door or in a narrow space when it has a smooth, usable lip. It may feel less comfortable on a heavy drawer or for someone who cannot pinch tightly.
What Pull Shape Is Easiest for Arthritis?
A smooth pull with an open grip that can be used with one hand and without tight pinching is usually easier than a small edge or round knob that requires a firm pinch. Test the exact pull because hand size, pain, strength, and drawer resistance vary.
Can a Pull Have Too Much Projection?
Yes. A deep pull can catch clothing, narrow a walkway, or strike an adjacent cabinet or appliance. Check the whole room as well as the grip.
Check Both Projection and the Space Behind the Pull
Projection is useful, but it only shows the outer boundary of the hardware. The usable space is what remains after accounting for the bar, posts, backplate, and cabinet profile.
Measure the narrowest usable gap and try one sample on the drawer that is hardest to open. Check the walkway and nearby doors before buying the rest. A few minutes with one real sample will show whether the pull is hard on the hand or simply in the way.
